Flink客户端操作的五种模式

云计算 flink hadoop 2019/07/22

本文于1821天之前发表，文中内容可能已经过时。

1. 概要

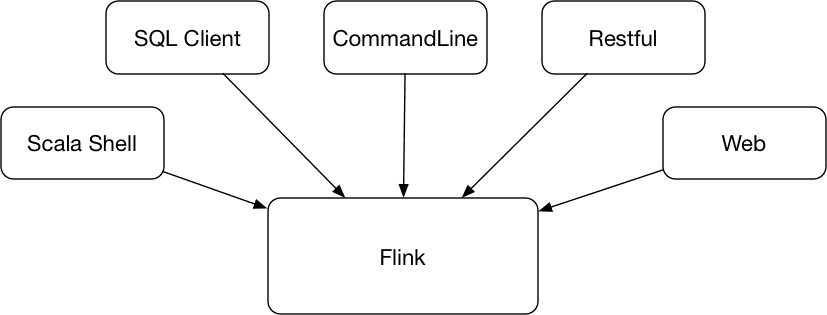

如下图所示，Flink 提供了丰富的客户端操作来提交任务和与任务进行交互，包括 Flink 命令行，Scala Shell，SQL Client，Restful API 和 Web。Flink 首先提供的最重要的是命令行，其次是 SQL Client 用于提交 SQL 任务的运行，还有就是 Scala Shell 提交 Table API 的任务。同时，Flink 也提供了 Restful 服务，用户可以通过 http 方式进行调用。此外，还有 Web 的方式可以提交任务。

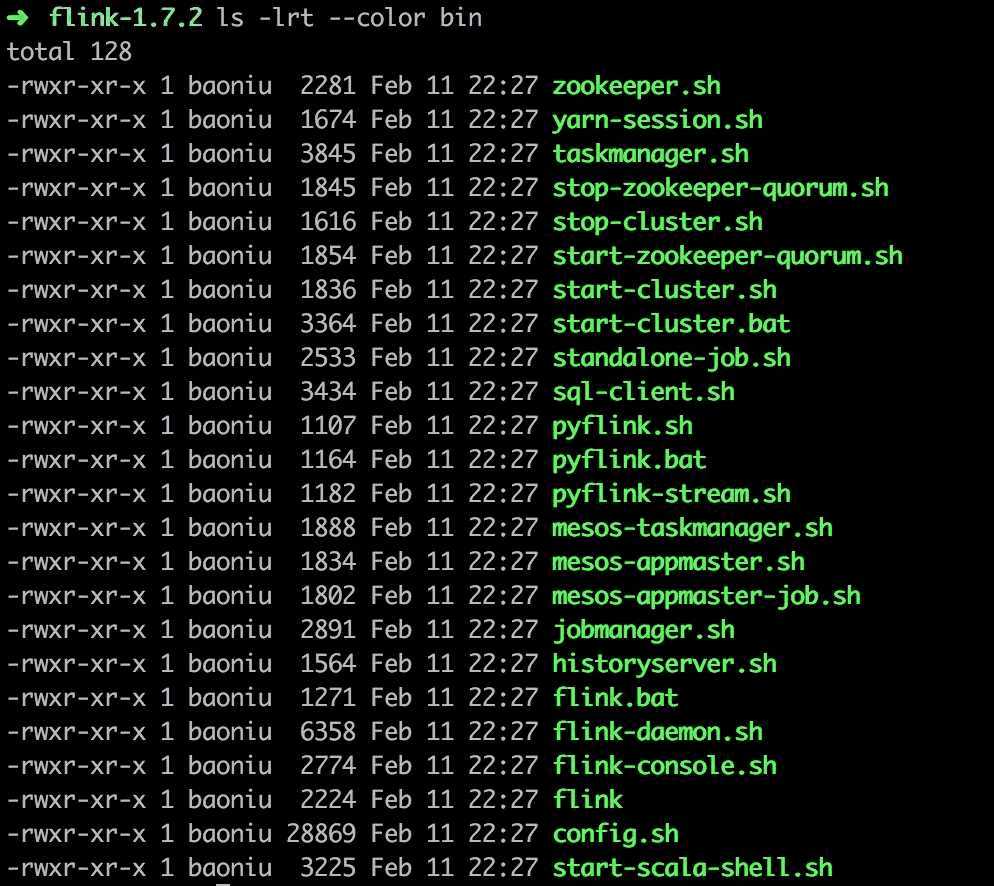

在 Flink 安装目录的 bin 目录下面可以看到有 flink, start-scala-shell.sh 和 sql-client.sh等文件，这些都是客户端操作的入口。


Flink 的命令行参数很多，输入 flink - h 能看到完整的说明：

1
➜  flink-1.7.2 bin/flink -h

如果想看某一个命令的参数，比如 Run 命令，输入：

1
➜  flink-1.7.2 bin/flink run -h

本文主要讲解常见的一些操作，更详细的文档请参考: Flink 命令行文档。

2.1.1 Standalone

首先启动一个 Standalone 的集群：

1
2
3
4
➜  flink-1.7.2 bin/start-cluster.sh
Starting cluster.
Starting standalonesession daemon on host zkb-MBP.local.
Starting taskexecutor daemon on host zkb-MBP.local.

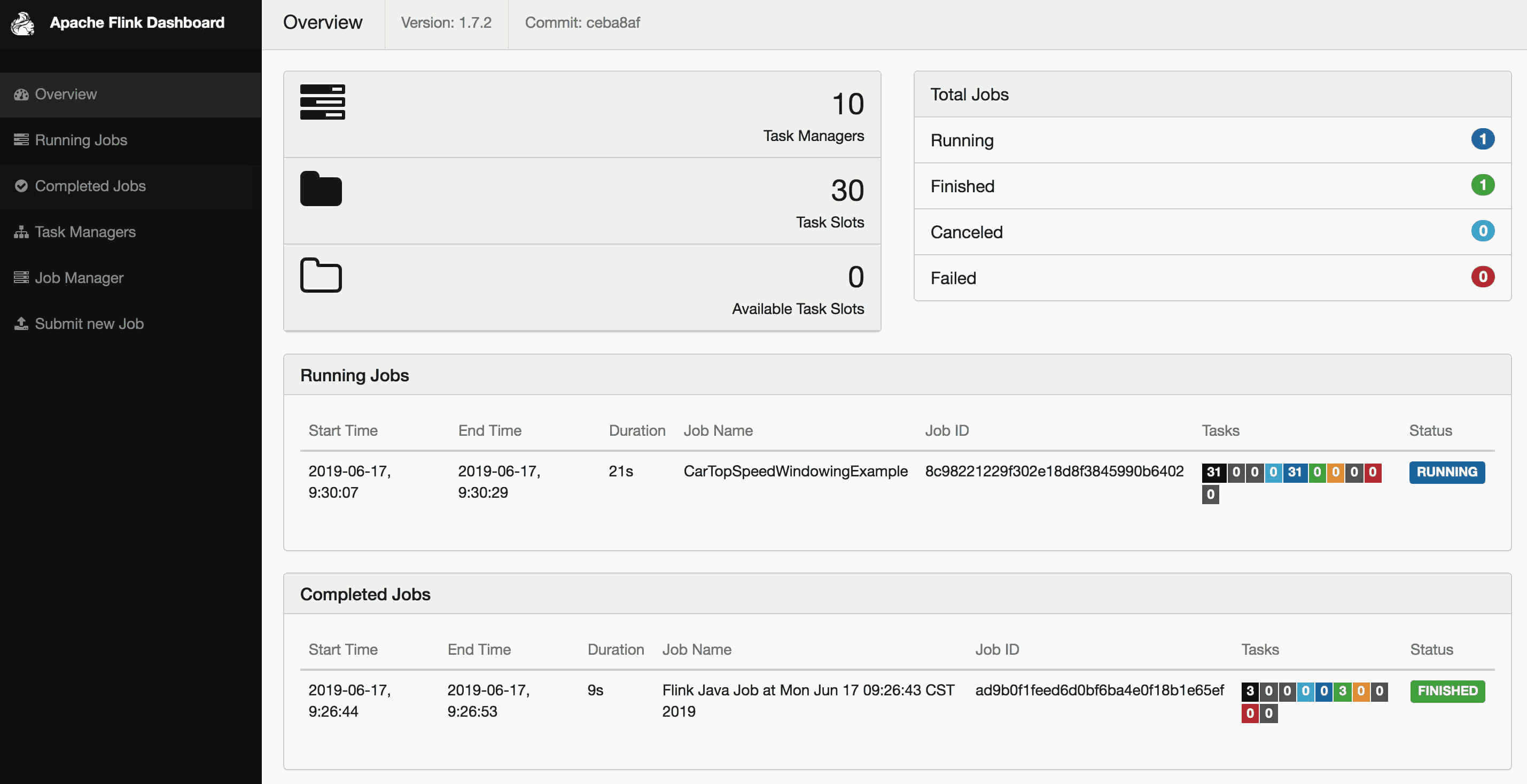

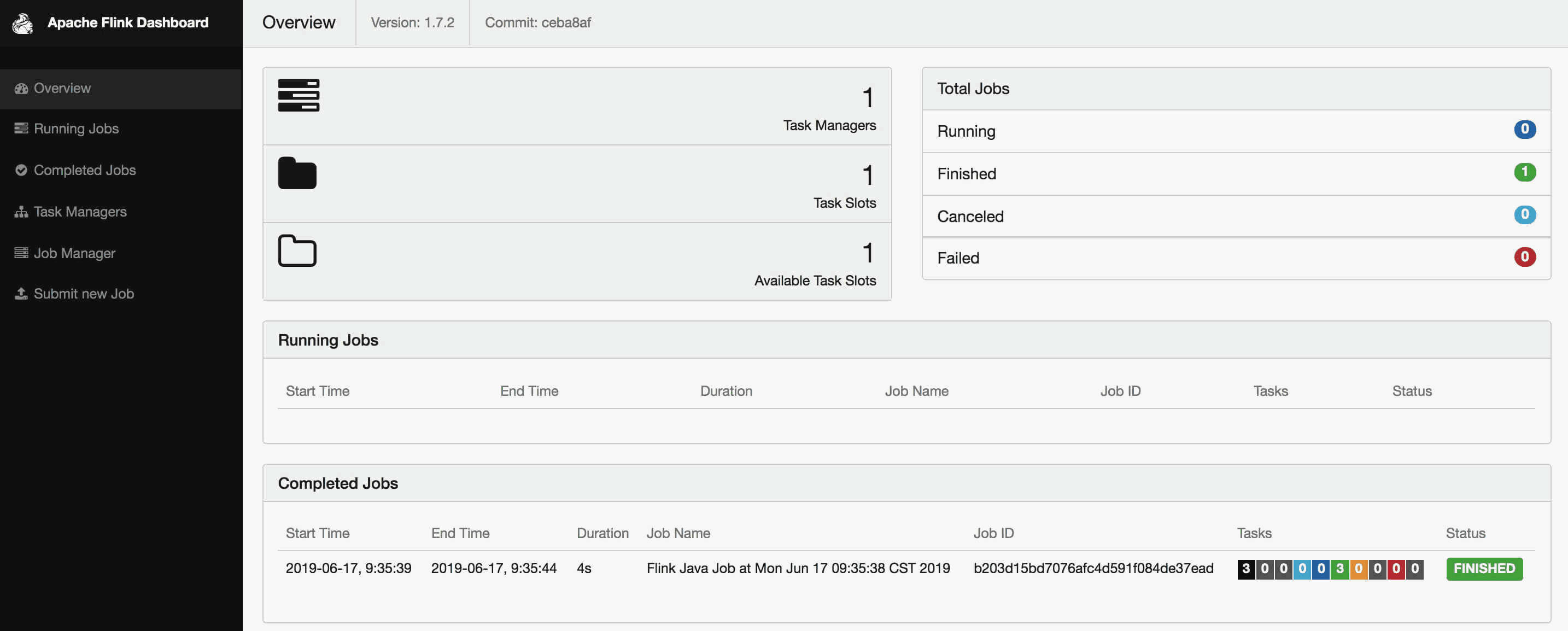

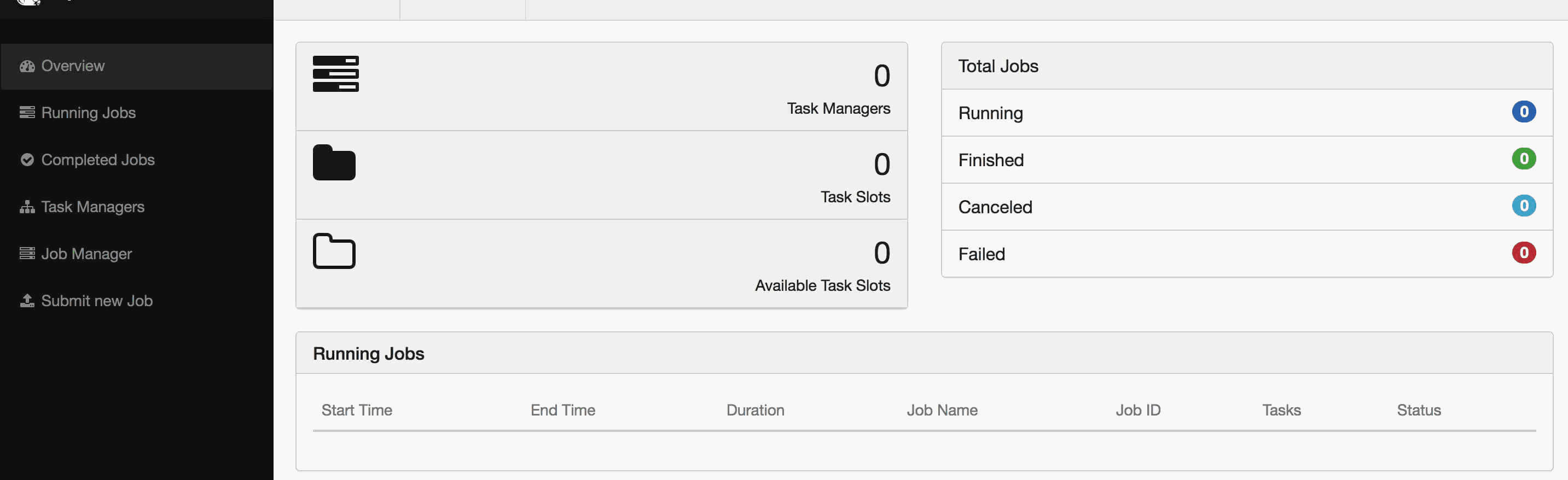

打开 http://127.0.0.1:8081 能看到 Web 界面。

Run

运行任务，以 Flink 自带的例子 TopSpeedWindowing 为例：

1
2
3
4
5
6
➜  flink-1.7.2 bin/flink run -d examples/streaming/TopSpeedWindowing.jar
Starting execution of program
Executing TopSpeedWindowing example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
Job has been submitted with JobID 5e20cb6b0f357591171dfcca2eea09de

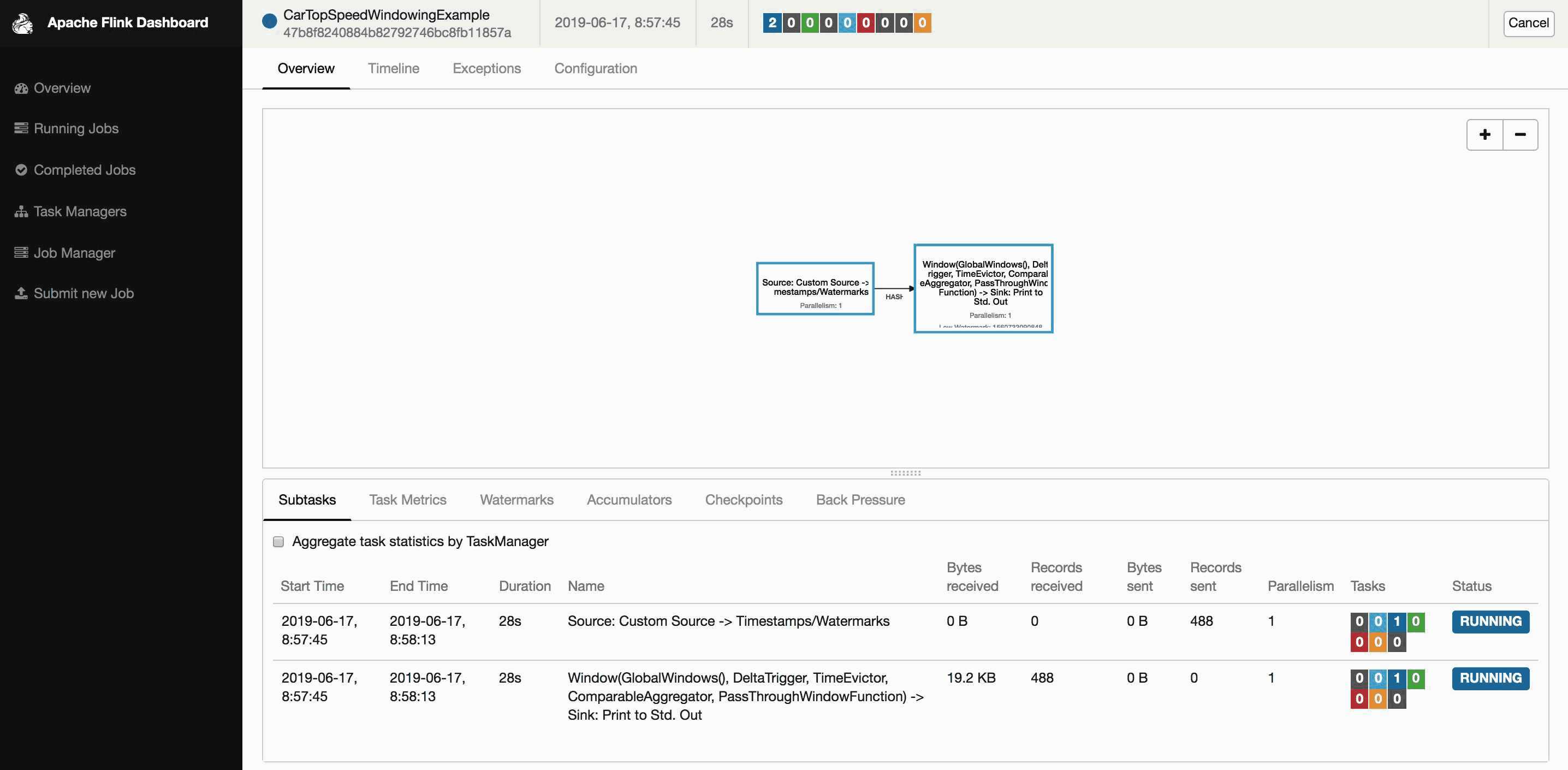

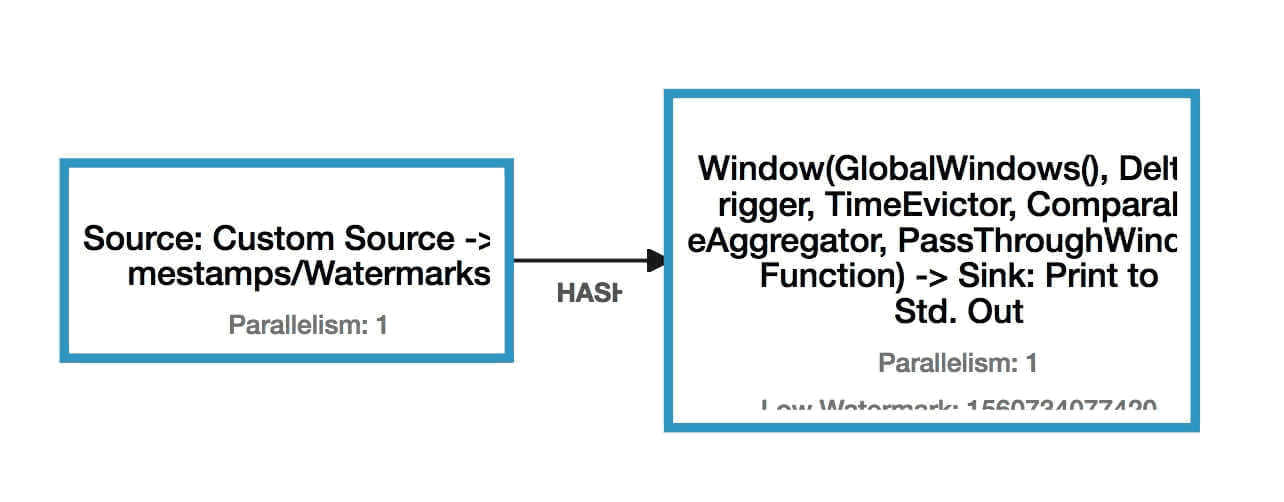

运行起来后默认是 1 个并发:

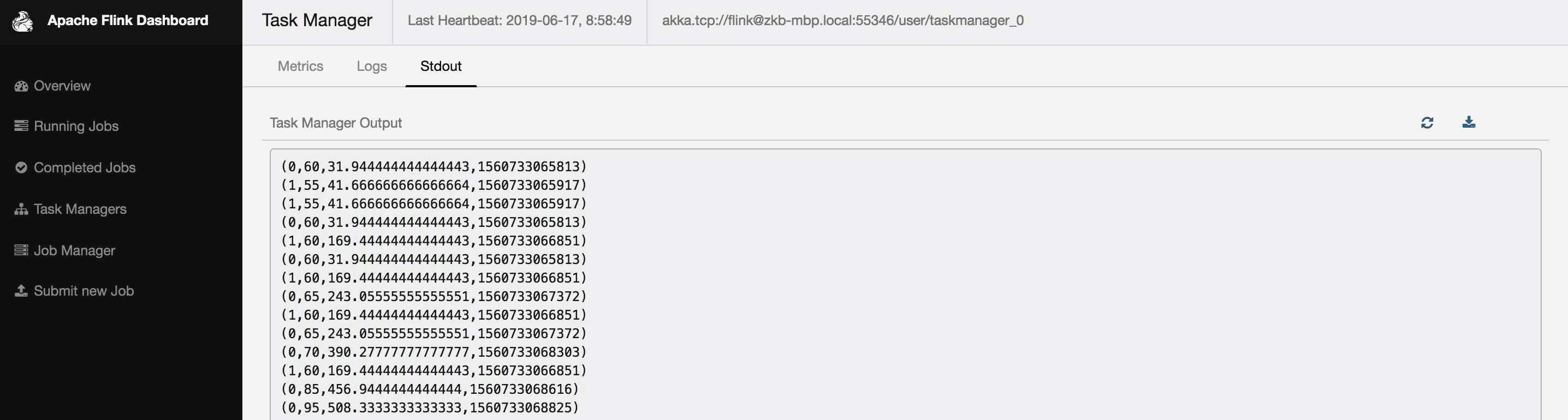

点左侧「Task Manager」，然后点「Stdout」能看到输出日志：

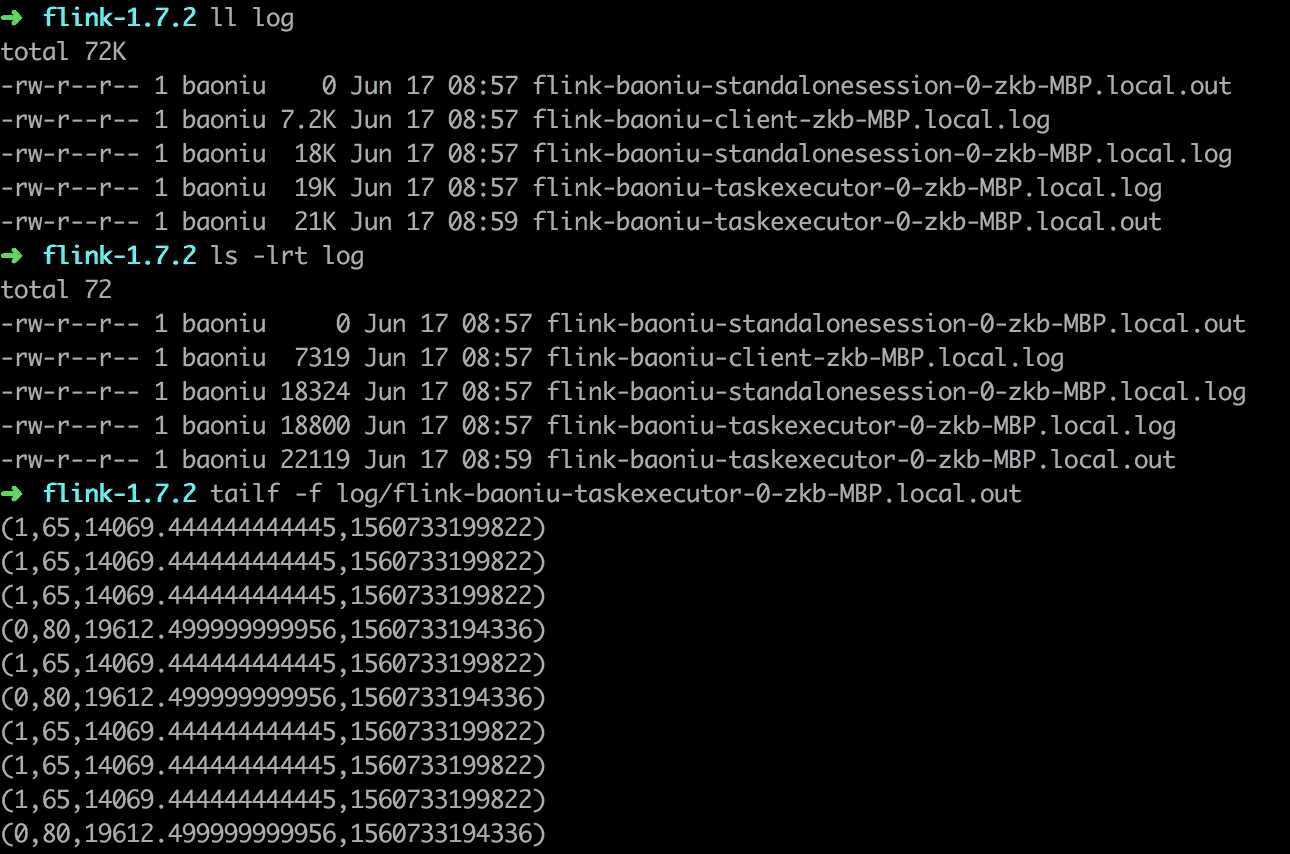

或者查看本地 Log 目录下的 *.out 文件：


List

查看任务列表：

1
2
3
4
5
6
➜  flink-1.7.2 bin/flink list -m 127.0.0.1:8081
Waiting for response...
------------------ Running/Restarting Jobs -------------------
24.03.2019 10:14:06 : 5e20cb6b0f357591171dfcca2eea09de : CarTopSpeedWindowingExample (RUNNING)
--------------------------------------------------------------
No scheduled jobs.
Stop

停止任务。通过 -m 来指定要停止的 JobManager 的主机地址和端口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
➜  flink-1.7.2 bin/flink stop -m 127.0.0.1:8081 d67420e52bd051fae2fddbaa79e046bb
Stopping job d67420e52bd051fae2fddbaa79e046bb.
------------------------------------------------------------
The program finished with the following exception:
  org.apache.flink.util.FlinkException: Could not stop the job   d67420e52bd051fae2fddbaa79e046bb.
  at org.apache.flink.client.cli.CliFrontend.lambda$stop$5(CliFrontend.java:554)
  at org.apache.flink.client.cli.CliFrontend.runClusterAction(CliFrontend.java:985)
  at org.apache.flink.client.cli.CliFrontend.stop(CliFrontend.java:547)
  at org.apache.flink.client.cli.CliFrontend.parseParameters(CliFrontend.java:1062)
  at org.apache.flink.client.cli.CliFrontend.lambda$main$11(CliFrontend.java:1126)
  at java.security.AccessController.doPrivileged(Native Method)
  at javax.security.auth.Subject.doAs(Subject.java:422)
  at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1836)
  at org.apache.flink.runtime.security.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
  at org.apache.flink.client.cli.CliFrontend.main(CliFrontend.java:1126)
Caused by: java.util.concurrent.ExecutionException: org.apache.flink.runtime.rest.util.RestClientException: [Job termination (STOP) failed: This job is not stoppable.]
  at java.util.concurrent.CompletableFuture.reportGet(CompletableFuture.java:357)
  at java.util.concurrent.CompletableFuture.get(CompletableFuture.java:1915)
  at org.apache.flink.client.program.rest.RestClusterClient.stop(RestClusterClient.java:392)
  at org.apache.flink.client.cli.CliFrontend.lambda$stop$5(CliFrontend.java:552)
... 9 more
Caused by: org.apache.flink.runtime.rest.util.RestClientException: [Job termination (STOP) failed: This job is not stoppable.]
  at org.apache.flink.runtime.rest.RestClient.parseResponse(RestClient.java:380)
  at org.apache.flink.runtime.rest.RestClient.lambda$submitRequest$3(RestClient.java:364)
  at java.util.concurrent.CompletableFuture.uniCompose(CompletableFuture.java:952)
  at java.util.concurrent.CompletableFuture$UniCompose.tryFire(CompletableFuture.java:926)
  at java.util.concurrent.CompletableFuture$Completion.run(CompletableFuture.java:442)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
  at java.lang.Thread.run(Thread.java:748)

从日志里面能看出 Stop 命令执行失败了。一个 Job 能够被 Stop 要求所有的 Source 都是可以 Stoppable 的，即实现了 StoppableFunction 接口。

1
2
3
4
5
6
7
8
9
10
11
12
13
14

/**
 * 需要能 stoppable 的函数必须实现这个接口，例如流式任务的 source。
 * stop() 方法在任务收到 STOP 信号的时候调用。
 * source 在接收到这个信号后，必须停止发送新的数据且优雅的停止。
 */
@PublicEvolving
public interface StoppableFunction {
	/**
	  * 停止 source。与 cancel() 不同的是，这是一个让 source 优雅停止的请求。
     * 等待中的数据可以继续发送出去，不需要立即停止。
	  */
	void stop();
}
Cancel

取消任务。如果在 conf/flink-conf.yaml 里面配置了 state.savepoints.dir，会保存 Savepoint，否则不会保存 Savepoint。

1
2
3
4
➜  flink-1.7.2 bin/flink cancel -m 127.0.0.1:8081 5e20cb6b0f357591171dfcca2eea09de

Cancelling job 5e20cb6b0f357591171dfcca2eea09de.
Cancelled job 5e20cb6b0f357591171dfcca2eea09de.

也可以在停止的时候显示指定 Savepoint 目录。

1
2
3
4
5
6
7
8
➜  flink-1.7.2 bin/flink cancel -m 127.0.0.1:8081 -s /tmp/savepoint 29da945b99dea6547c3fbafd57ed8759

Cancelling job 29da945b99dea6547c3fbafd57ed8759 with savepoint to /tmp/savepoint.
Cancelled job 29da945b99dea6547c3fbafd57ed8759. Savepoint stored in file:/tmp/savepoint/savepoint-29da94-88299bacafb7.

➜  flink-1.7.2 ll /tmp/savepoint/savepoint-29da94-88299bacafb7
total 32K
-rw-r--r-- 1 baoniu 29K Mar 24 10:33 _metadata

取消和停止（流作业）的区别如下：

  • cancel() 调用，立即调用作业算子的 cancel() 方法，以尽快取消它们。如果算子在接到 cancel() 调用后没有停止，Flink 将开始定期中断算子线程的执行，直到所有算子停止为止。
  • stop() 调用，是更优雅的停止正在运行流作业的方式。stop() 仅适用于 Source 实现了 StoppableFunction 接口的作业。当用户请求停止作业时，作业的所有 Source 都将接收 stop() 方法调用。直到所有 Source 正常关闭时，作业才会正常结束。这种方式，使作业正常处理完所有作业。
Savepoint

触发 Savepoint。

1
2
3
4
5
➜  flink-1.7.2 bin/flink savepoint -m 127.0.0.1:8081 ec53edcfaeb96b2a5dadbfbe5ff62bbb /tmp/savepoint
Triggering savepoint for job ec53edcfaeb96b2a5dadbfbe5ff62bbb.
Waiting for response...
Savepoint completed. Path: file:/tmp/savepoint/savepoint-ec53ed-84b00ce500ee
You can resume your program from this savepoint with the run command.

说明：Savepoint 和 Checkpoint 的区别（详见文档）：

  • Checkpoint 是增量做的，每次的时间较短，数据量较小，只要在程序里面启用后会自动触发，用户无须感知；Checkpoint 是作业 failover 的时候自动使用，不需要用户指定。
  • Savepoint 是全量做的，每次的时间较长，数据量较大，需要用户主动去触发。Savepoint 一般用于程序的版本更新（详见文档），Bug 修复，A/B Test 等场景，需要用户指定。

通过 -s 参数从指定的 Savepoint 启动：

1
2
3
4
5
➜  flink-1.7.2 bin/flink run -d -s /tmp/savepoint/savepoint-f049ff-24ec0d3e0dc7 ./examples/streaming/TopSpeedWindowing.jar
Starting execution of program
Executing TopSpeedWindowing example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.

查看 JobManager 的日志，能够看到类似这样的 Log：

1
2
3
4
5
6
2019-03-28 10:30:53,957 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator
- Starting job 790d7b98db6f6af55d04aec1d773852d from savepoint /tmp/savepoint/savepoint-f049ff-24ec0d3e0dc7 ()
2019-03-28 10:30:53,959 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator
 - Reset the checkpoint ID of job 790d7b98db6f6af55d04aec1d773852d to 2.
2019-03-28 10:30:53,959 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator
- Restoring job 790d7b98db6f6af55d04aec1d773852d from latest valid checkpoint: Checkpoint 1 @ 0 for 790d7b98db6f6af55d04aec1d773852d.
Modify

修改任务并行度。

为了方便演示，我们修改 conf/flink-conf.yaml 将 Task Slot 数从默认的 1 改为 4，并配置 Savepoint 目录。（Modify 参数后面接 -s 指定 Savepoint 路径当前版本可能有 Bug，提示无法识别）

1
2
taskmanager.numberOfTaskSlots: 4
state.savepoints.dir: file:///tmp/savepoint

修改参数后需要重启集群生效，然后再启动任务：

1
2
3
4
5
6
7
8
9
10
11
12
13
➜  flink-1.7.2 bin/stop-cluster.sh && bin/start-cluster.sh
Stopping taskexecutor daemon (pid: 53139) on host zkb-MBP.local.
Stopping standalonesession daemon (pid: 52723) on host zkb-MBP.local.
Starting cluster.
Starting standalonesession daemon on host zkb-MBP.local.
Starting taskexecutor daemon on host zkb-MBP.local.

➜  flink-1.7.2 bin/flink run -d examples/streaming/TopSpeedWindowing.jar
Starting execution of program
Executing TopSpeedWindowing example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
Job has been submitted with JobID 7752ea7b0e7303c780de9d86a5ded3fa

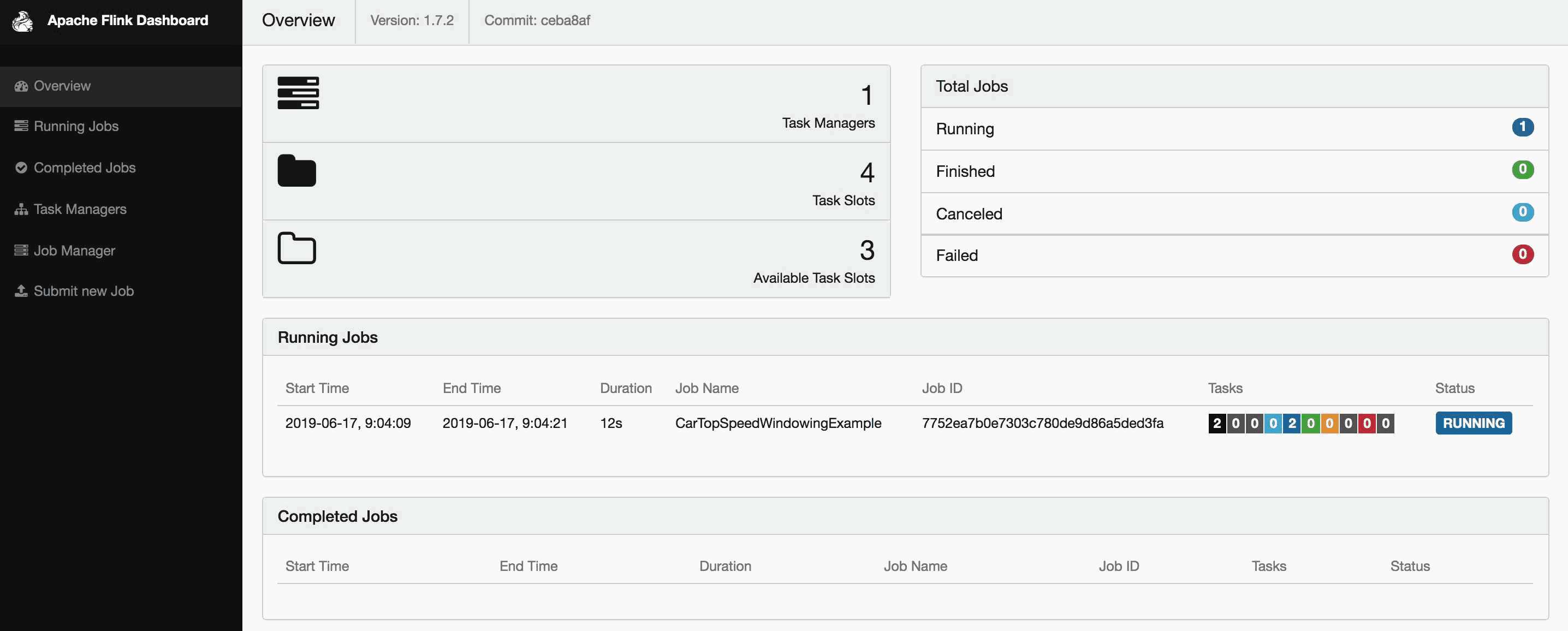

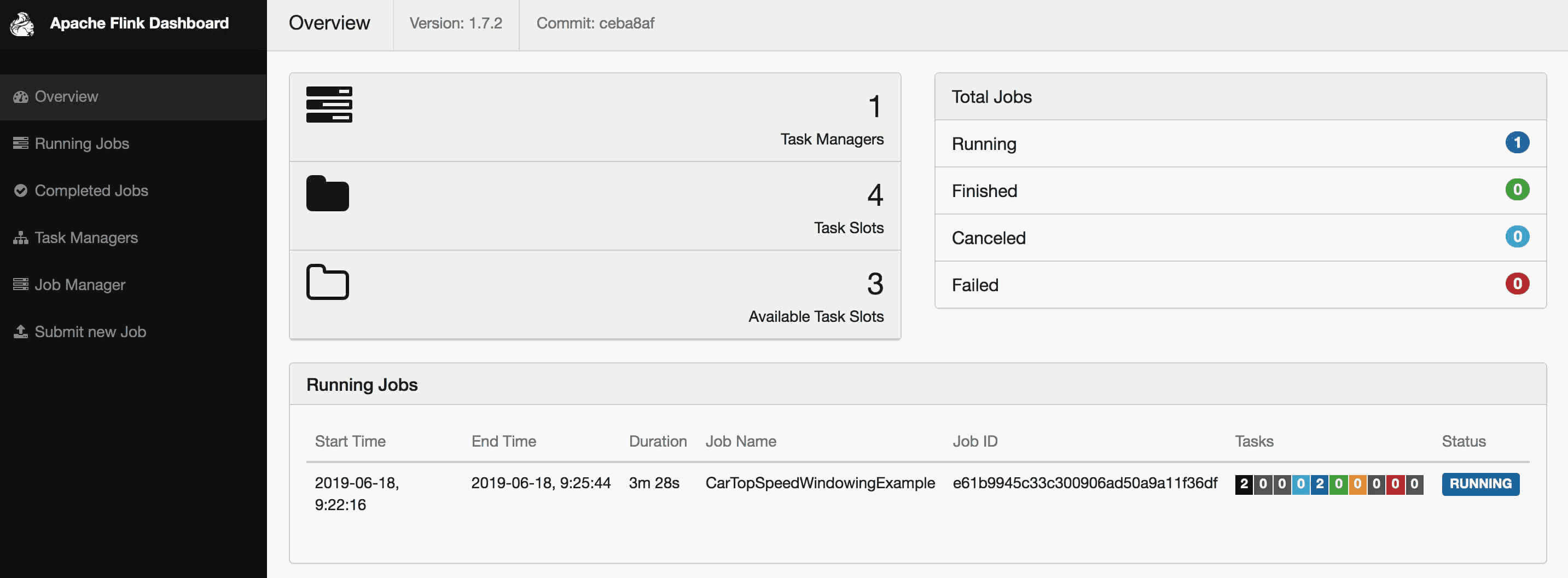

从页面上能看到 Task Slot 变为了 4，这时候任务的默认并发度是 1。



通过 Modify 命令依次将并发度修改为 4 和 3，可以看到每次 Modify 命令都会触发一次 Savepoint。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
➜  flink-1.7.2 bin/flink modify -p 4 7752ea7b0e7303c780de9d86a5ded3fa
Modify job 7752ea7b0e7303c780de9d86a5ded3fa.
Rescaled job 7752ea7b0e7303c780de9d86a5ded3fa. Its new parallelism is 4.

➜  flink-1.7.2 ll /tmp/savepoint
total 0
drwxr-xr-x 3 baoniu 96 Jun 17 09:05 savepoint-7752ea-00c05b015836/

➜  flink-1.7.2 bin/flink modify -p 3 7752ea7b0e7303c780de9d86a5ded3fa
Modify job 7752ea7b0e7303c780de9d86a5ded3fa.
Rescaled job 7752ea7b0e7303c780de9d86a5ded3fa. Its new parallelism is 3.

➜  flink-1.7.2 ll /tmp/savepoint
total 0
drwxr-xr-x 3 baoniu 96 Jun 17 09:08 savepoint-7752ea-449b131b2bd4/


查看 JobManager 的日志，可以看到：

1
2
3
4
5
6
2019-06-17 09:05:11,179 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator     - Starting job 7752ea7b0e7303c780de9d86a5ded3fa from savepoint file:/tmp/savepoint/savepoint-790d7b-3581698f007e ()
2019-06-17 09:05:11,182 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator     - Reset the checkpoint ID of job 7752ea7b0e7303c780de9d86a5ded3fa to 3.
2019-06-17 09:05:11,182 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator     - Restoring job 790d7b98db6f6af55d04aec1d773852d from latest valid checkpoint: Checkpoint 2 @ 0 for 7752ea7b0e7303c780de9d86a5ded3fa.
2019-06-17 09:05:11,184 INFO  org.apache.flink.runtime.checkpoint.CheckpointCoordinator     - No master state to restore
2019-06-17 09:05:11,184 INFO  org.apache.flink.runtime.executiongraph.ExecutionGraph        - Job CarTopSpeedWindowingExample (7752ea7b0e7303c780de9d86a5ded3fa) switched from state RUNNING to SUSPENDING.
org.apache.flink.util.FlinkException: Job is being rescaled.
Info

Info 命令是用来查看 Flink 任务的执行计划（StreamGraph）的。

1
2
3
4
➜  flink-1.7.2 bin/flink info examples/streaming/TopSpeedWindowing.jar
----------------------- Execution Plan -----------------------
{"nodes":[{"id":1,"type":"Source: Custom Source","pact":"Data Source","contents":"Source: Custom Source","parallelism":1},{"id":2,"type":"Timestamps/Watermarks","pact":"Operator","contents":"Timestamps/Watermarks","parallelism":1,"predecessors":[{"id":1,"ship_strategy":"FORWARD","side":"second"}]},{"id":4,"type":"Window(GlobalWindows(), DeltaTrigger, TimeEvictor, ComparableAggregator, PassThroughWindowFunction)","pact":"Operator","contents":"Window(GlobalWindows(), DeltaTrigger, TimeEvictor, ComparableAggregator, PassThroughWindowFunction)","parallelism":1,"predecessors":[{"id":2,"ship_strategy":"HASH","side":"second"}]},{"id":5,"type":"Sink: Print to Std. Out","pact":"Data Sink","contents":"Sink: Print to Std. Out","parallelism":1,"predecessors":[{"id":4,"ship_strategy":"FORWARD","side":"second"}]}]}
--------------------------------------------------------------

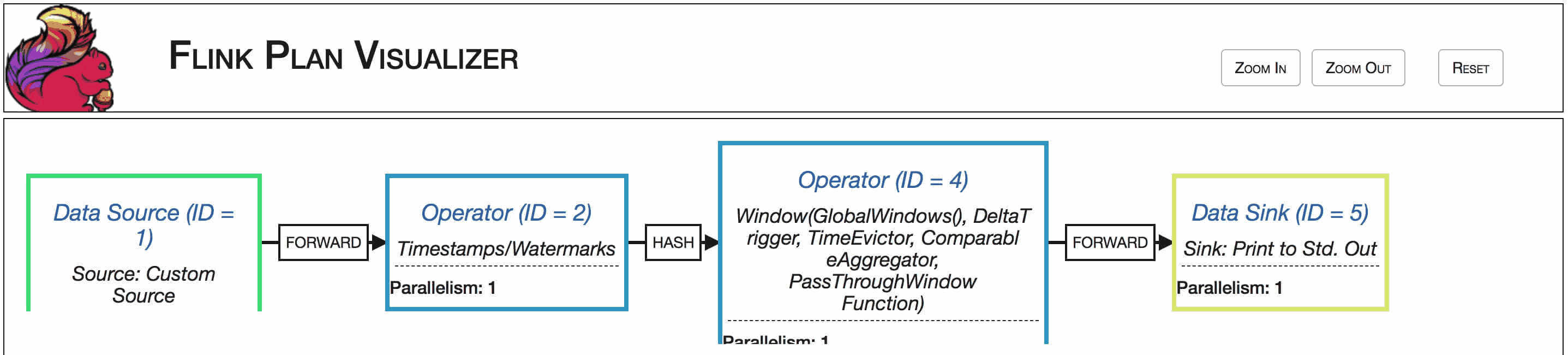

拷贝输出的 Json 内容，粘贴到这个网站：http://flink.apache.org/visualizer/

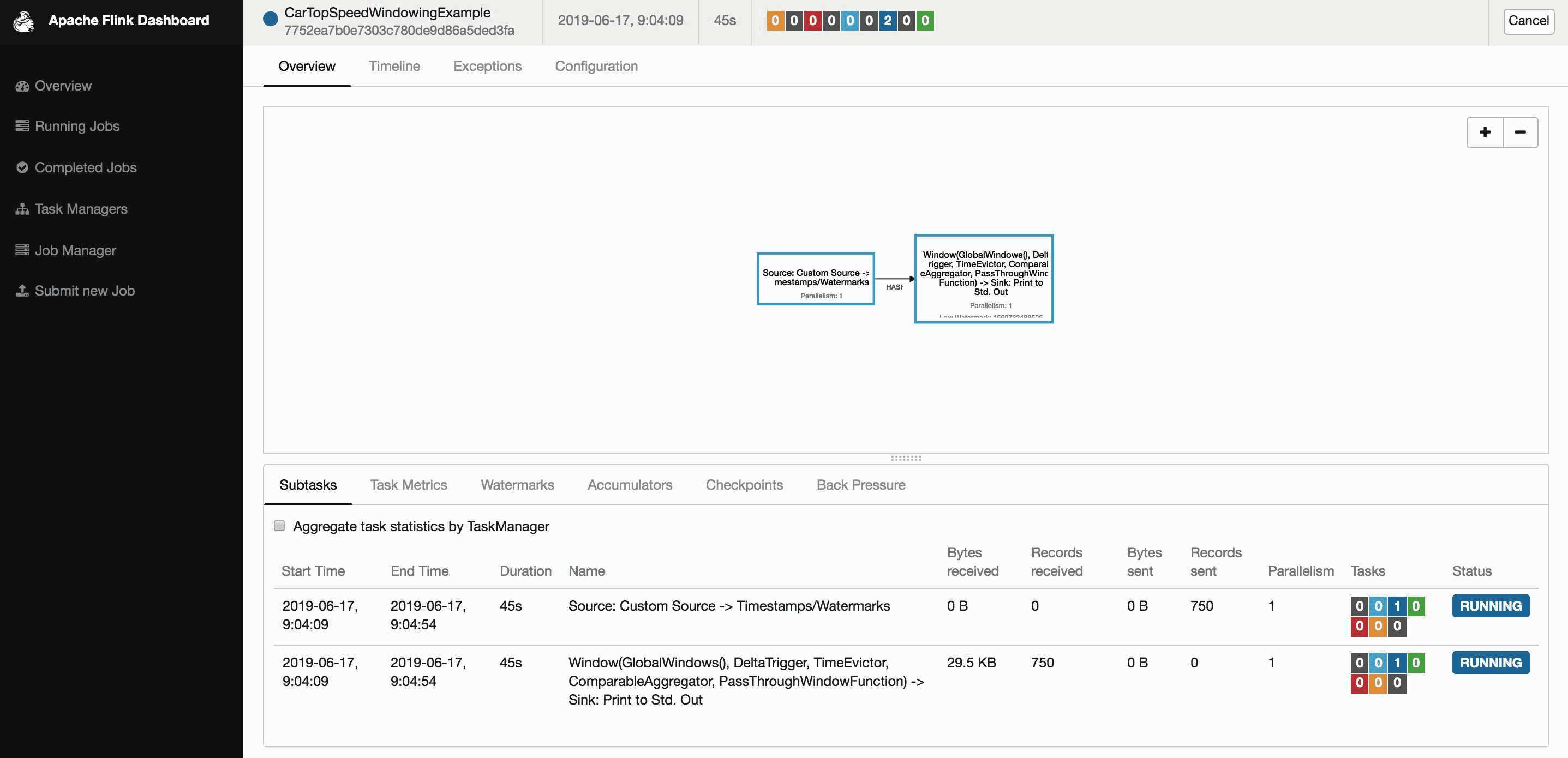

可以和实际运行的物理执行计划对比：


2.1.2 Yarn per-job

单任务 Attach 模式

默认是 Attach 模式，即客户端会一直等待直到程序结束才会退出。

  • 通过 -m yarn-cluster 指定 Yarn 模式

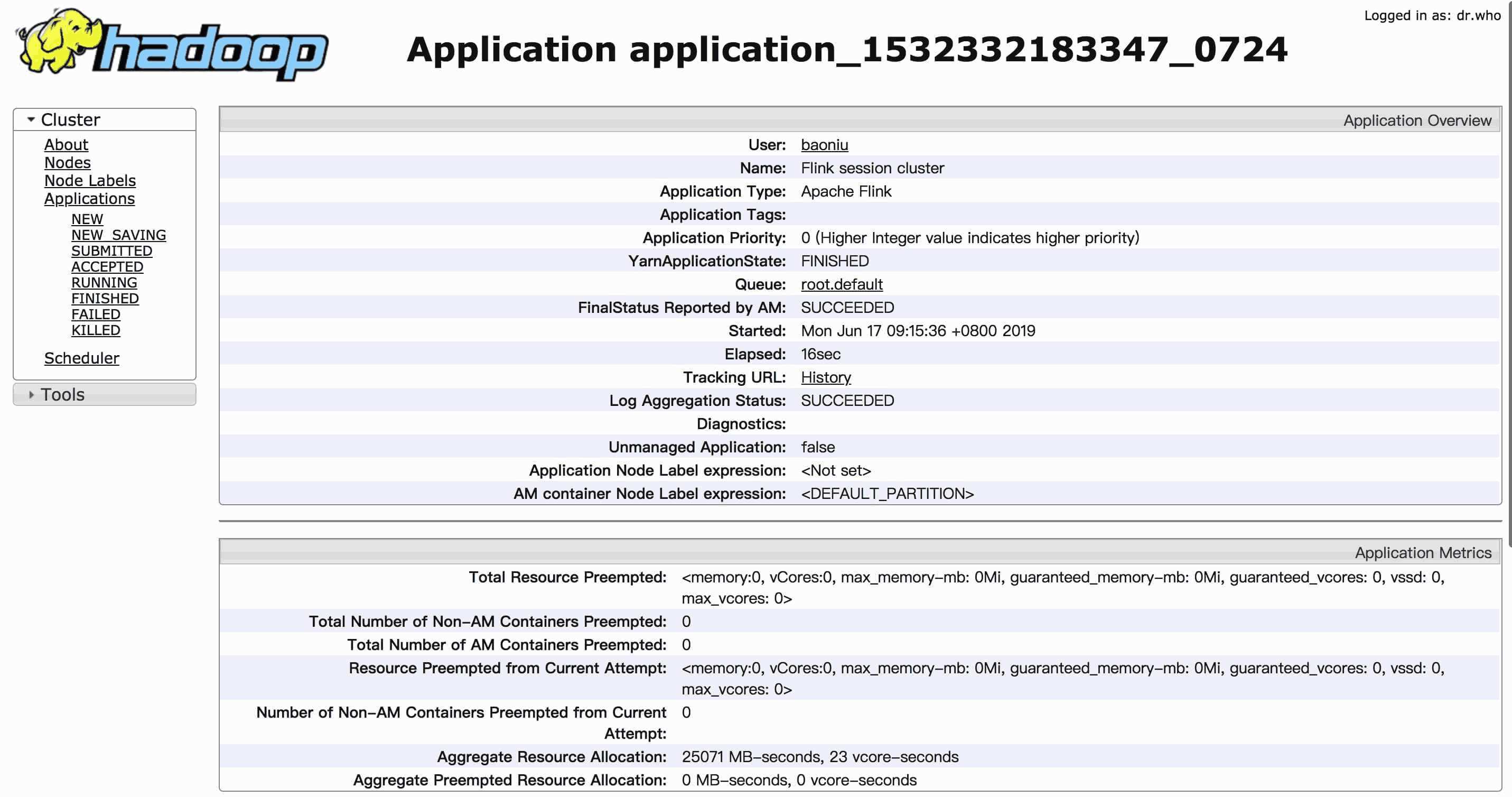

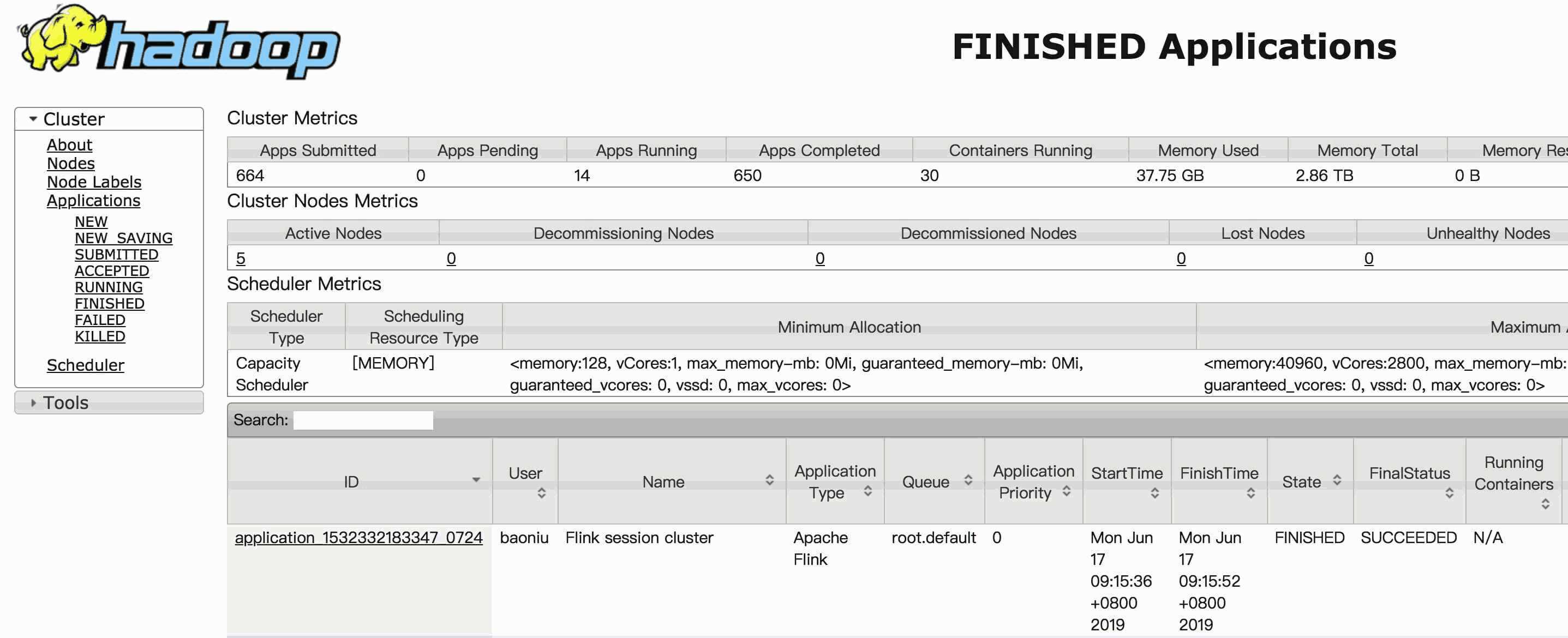

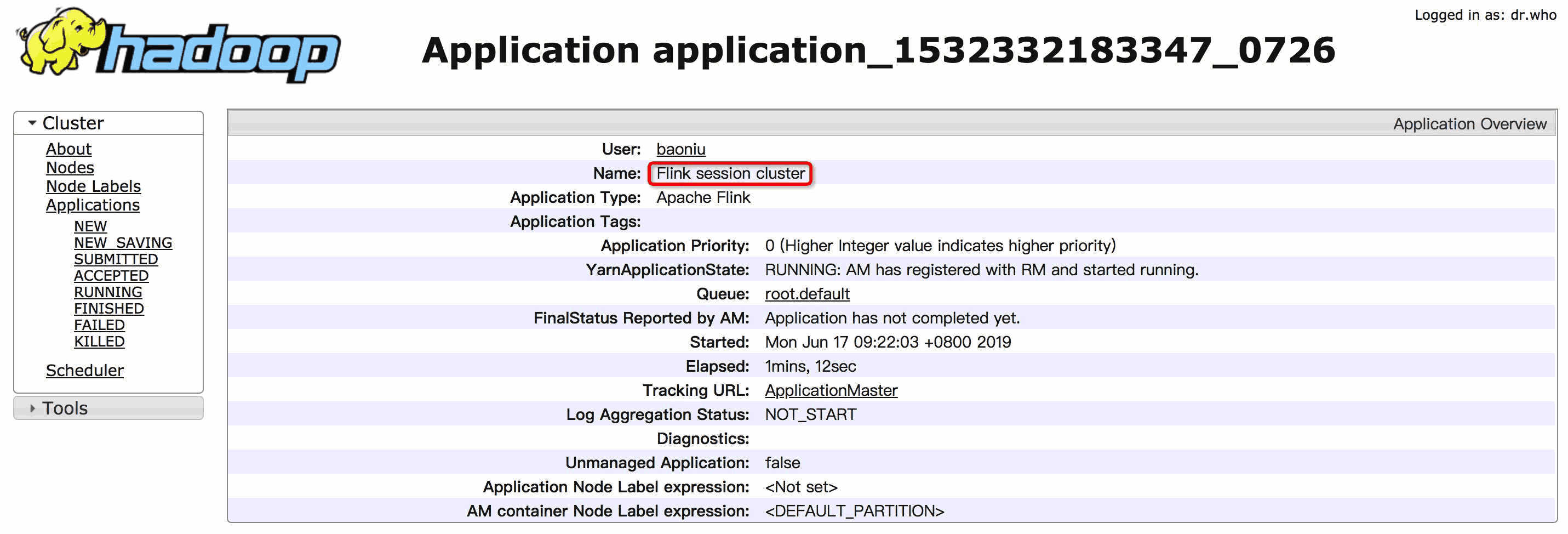

  • Yarn 上显示名字为 Flink session cluster，这个 Batch 的 Wordcount 任务运行完会 FINISHED。
  • 客户端能看到结果输出
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
[admin@z17.sqa.zth /home/admin/flink/flink-1.7.2]
$echo $HADOOP_CONF_DIR
/etc/hadoop/conf/

[admin@z17.sqa.zth /home/admin/flink/flink-1.7.2]
$./bin/flink run -m yarn-cluster ./examples/batch/WordCount.jar

2019-06-17 09:15:24,511 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-06-17 09:15:24,690 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-17 09:15:24,690 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-17 09:15:24,907 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=1024, numberTaskManagers=1, slotsPerTaskManager=4}
2019-06-17 09:15:25,430 WARN  org.apache.hadoop.hdfs.shortcircuit.DomainSocketFactory       - The short-circuit local reads feature cannot be used because libhadoop cannot be loaded.
2019-06-17 09:15:25,438 WARN  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - The configuration directory ('/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf') contains both LOG4J and Logback configuration files. Please delete or rename one of them.
2019-06-17 09:15:36,239 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Submitting application master application_1532332183347_0724
2019-06-17 09:15:36,276 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1532332183347_0724
2019-06-17 09:15:36,276 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Waiting for the cluster to be allocated
2019-06-17 09:15:36,281 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Deploying cluster, current state ACCEPTED
2019-06-17 09:15:40,426 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - YARN application has been deployed successfully.
Starting execution of program
Executing WordCount example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
(a,5)
(action,1)
(after,1)
(against,1)
(all,2)
... ...
(would,2)
(wrong,1)
(you,1)
Program execution finished
Job with JobID 8bfe7568cb5c3254af30cbbd9cd5971e has finished.
Job Runtime: 9371 ms
Accumulator Results:
- 2bed2c5506e9237fb85625416a1bc508 (java.util.ArrayList) [170 elements]



如果我们以 Attach 模式运行 Streaming 的任务，客户端会一直等待不退出，可以运行以下的例子试验下：

1
./bin/flink run -m yarn-cluster ./examples/streaming/TopSpeedWindowing.jar
单任务 Detached 模式
  • 由于是 Detached 模式，客户端提交完任务就退出了

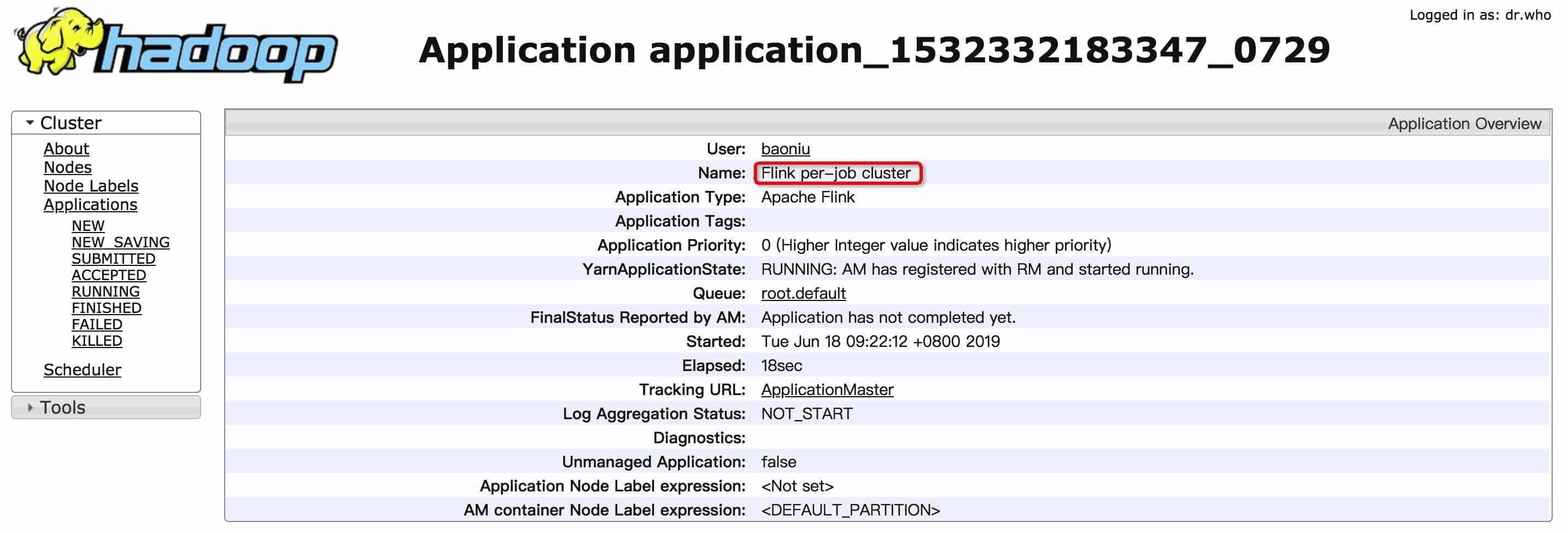

  • Yarn 上显示为 Flink per-job cluster
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
$./bin/flink run -yd -m yarn-cluster ./examples/streaming/TopSpeedWindowing.jar

2019-06-18 09:21:59,247 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-06-18 09:21:59,428 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-18 09:21:59,428 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-18 09:21:59,940 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=1024, numberTaskManagers=1, slotsPerTaskManager=4}
2019-06-18 09:22:00,427 WARN  org.apache.hadoop.hdfs.shortcircuit.DomainSocketFactory       - The short-circuit local reads feature cannot be used because libhadoop cannot be loaded.
2019-06-18 09:22:00,436 WARN  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - The configuration directory ('/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf') contains both LOG4J and Logback configuration files. Please delete or rename one of them.
^@2019-06-18 09:22:12,113 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Submitting application master application_1532332183347_0729
2019-06-18 09:22:12,151 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1532332183347_0729
2019-06-18 09:22:12,151 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Waiting for the cluster to be allocated
2019-06-18 09:22:12,155 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Deploying cluster, current state ACCEPTED
2019-06-18 09:22:16,275 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - YARN application has been deployed successfully.
2019-06-18 09:22:16,275 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - The Flink YARN client has been started in detached mode. In order to stop Flink on YARN, use the following command or a YARN web interface to stop it:
yarn application -kill application_1532332183347_0729
Please also note that the temporary files of the YARN session in the home directory will not be removed.
Job has been submitted with JobID e61b9945c33c300906ad50a9a11f36df



2.1.3 Yarn session

启动 Session
1
./bin/yarn-session.sh -tm 2048 -s 3

表示启动一个 Yarn session 集群，每个 TM 的内存是 2 G，每个 TM 有 3 个 Slot。(注意：-n 参数不生效)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
➜  flink-1.7.2 ./bin/yarn-session.sh -tm 2048 -s 3
2019-06-17 09:21:50,177 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, localhost
2019-06-17 09:21:50,179 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2019-06-17 09:21:50,179 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2019-06-17 09:21:50,179 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.heap.size, 1024m
2019-06-17 09:21:50,179 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 4
2019-06-17 09:21:50,179 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: state.savepoints.dir, file:///tmp/savepoint
2019-06-17 09:21:50,180 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 1
2019-06-17 09:21:50,180 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: rest.port, 8081
2019-06-17 09:21:50,644 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2019-06-17 09:21:50,746 INFO  org.apache.flink.runtime.security.modules.HadoopModule        - Hadoop user set to baoniu (auth:SIMPLE)
2019-06-17 09:21:50,848 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-06-17 09:21:51,148 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=2048, numberTaskManagers=1, slotsPerTaskManager=3}
2019-06-17 09:21:51,588 WARN  org.apache.hadoop.hdfs.shortcircuit.DomainSocketFactory       - The short-circuit local reads feature cannot be used because libhadoop cannot be loaded.
2019-06-17 09:21:51,596 WARN  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - The configuration directory ('/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf') contains both LOG4J and Logback configuration files. Please delete or rename one of them.
^@2019-06-17 09:22:03,304 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Submitting application master application_1532332183347_0726
2019-06-17 09:22:03,336 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1532332183347_0726
2019-06-17 09:22:03,336 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Waiting for the cluster to be allocated
2019-06-17 09:22:03,340 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Deploying cluster, current state ACCEPTED
2019-06-17 09:22:07,722 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - YARN application has been deployed successfully.
2019-06-17 09:22:08,050 INFO  org.apache.flink.runtime.rest.RestClient                      - Rest client endpoint started.
Flink JobManager is now running on z07.sqa.net:37109 with leader id 00000000-0000-0000-0000-000000000000.
JobManager Web Interface: http://z07.sqa.net:37109

客户端默认是 Attach 模式，不会退出：

  • 可以 ctrl + c 退出，然后再通过 ./bin/yarn-session.sh -id application_1532332183347_0726 连上来；
  • 或者启动的时候用 -d 则为 detached 模式
    Yarn 上显示为 Flink session cluster；



  • 在本机的临时目录（有些机器是 /tmp 目录）下会生成一个文件：
1
2
3
4
5
6
➜  flink-1.7.2 cat /var/folders/2b/r6d49pcs23z43b8fqsyz885c0000gn/T/.yarn-properties-baoniu
#Generated YARN properties file
#Mon Jun 17 09:22:08 CST 2019
parallelism=3
dynamicPropertiesString=
applicationID=application_1532332183347_0726
提交任务
1
./bin/flink run ./examples/batch/WordCount.jar

将会根据 /tmp/.yarn-properties-admin 文件内容提交到了刚启动的 Session。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
➜  flink-1.7.2 ./bin/flink run ./examples/batch/WordCount.jar
2019-06-17 09:26:42,767 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Found Yarn properties file under /var/folders/2b/r6d49pcs23z43b8fqsyz885c0000gn/T/.yarn-properties-baoniu.
2019-06-17 09:26:42,767 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Found Yarn properties file under /var/folders/2b/r6d49pcs23z43b8fqsyz885c0000gn/T/.yarn-properties-baoniu.
2019-06-17 09:26:43,058 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - YARN properties set default parallelism to 3
2019-06-17 09:26:43,058 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - YARN properties set default parallelism to 3
YARN properties set default parallelism to 3
2019-06-17 09:26:43,097 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-06-17 09:26:43,229 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-17 09:26:43,229 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-06-17 09:26:43,327 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Found application JobManager host name 'z05c07216.sqa.zth.tbsite.net' and port '37109' from supplied application id 'application_1532332183347_0726'
Starting execution of program
Executing WordCount example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
^@(a,5)
(action,1)
(after,1)
(against,1)
(all,2)
(and,12)
... ...
(wrong,1)
(you,1)
Program execution finished
Job with JobID ad9b0f1feed6d0bf6ba4e0f18b1e65ef has finished.
Job Runtime: 9152 ms
Accumulator Results:
- fd07c75d503d0d9a99e4f27dd153114c (java.util.ArrayList) [170 elements]

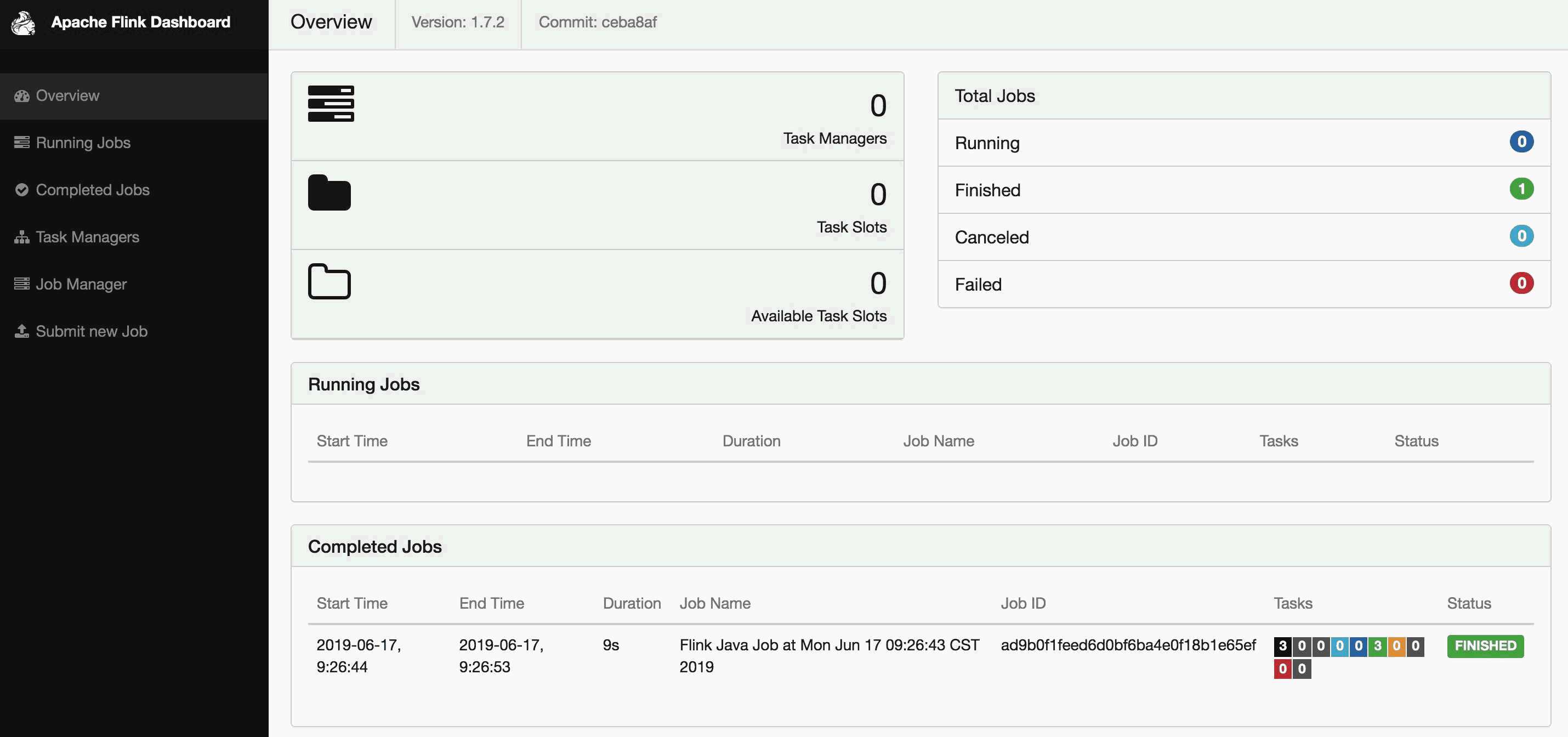

运行结束后 TM 的资源会释放。


提交到指定的 Session

通过 -yid 参数来提交到指定的 Session。

1
2
3
4
5
6
7
8
9
10
11
$./bin/flink run -d -p 30 -m yarn-cluster -yid application_1532332183347_0708 ./examples/streaming/TopSpeedWindowing.jar

2019-03-24 12:36:33,668 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-03-24 12:36:33,773 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-03-24 12:36:33,773 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-03-24 12:36:33,837 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Found application JobManager host name 'z05c05218.sqa.zth.tbsite.net' and port '60783' from supplied application id 'application_1532332183347_0708'
Starting execution of program
Executing TopSpeedWindowing example with default input data set.
Use --input to specify file input.
Printing result to stdout. Use --output to specify output path.
Job has been submitted with JobID 58d5049ebbf28d515159f2f88563f5fd


注：Blink 版本 的 Session 与 Flink 的 Session 的区别：

  • Flink 的 session -n 参数不生效，而且不会提前启动 TM；
  • Blink 的 session 可以通过 -n 指定启动多少个 TM，而且 TM 会提前起来；

2.2 Scala Shell

Scala Shell文档

2.2.1 Deploy

Local
1
2
3
4
5
6
$bin/start-scala-shell.sh local
Starting Flink Shell:
Starting local Flink cluster (host: localhost, port: 8081).
Connecting to Flink cluster (host: localhost, port: 8081).
... ...
scala>

任务运行说明：

  • Batch 任务内置了 benv 变量，通过 print() 将结果输出到控制台；
  • Streaming 任务内置了 senv 变量，通过 senv.execute(“job name”) 来提交任务，且 Datastream 的输出只有在 Local 模式下打印到控制台；
Remote

先启动一个 yarn session cluster：

1
2
3
4
5
6
7
8
9
10
11
12
13
$./bin/yarn-session.sh  -tm 2048 -s 3

2019-03-25 09:52:16,341 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, localhost
2019-03-25 09:52:16,342 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2019-03-25 09:52:16,342 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2019-03-25 09:52:16,343 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.heap.size, 1024m
2019-03-25 09:52:16,343 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 4
2019-03-25 09:52:16,343 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 1
2019-03-25 09:52:16,343 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: state.savepoints.dir, file:///tmp/savepoint
2019-03-25 09:52:16,343 INFO  org.apache.flink.configuration.GlobalConfiguration
… ...
Flink JobManager is now running on z054.sqa.net:28665 with leader id 00000000-0000-0000-0000-000000000000.
JobManager Web Interface: http://z054.sqa.net:28665

启动 scala shell，连到 jm：

1
2
3
4
5
$bin/start-scala-shell.sh remote z054.sqa.net 28665
Starting Flink Shell:
Connecting to Flink cluster (host: z054.sqa.net, port: 28665).
... ...
scala>
Yarn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
$./bin/start-scala-shell.sh yarn -n 2 -jm 1024 -s 2 -tm 1024 -nm flink-yarn

Starting Flink Shell:
2019-03-25 09:47:44,695 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.address, localhost
2019-03-25 09:47:44,697 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.rpc.port, 6123
2019-03-25 09:47:44,697 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: jobmanager.heap.size, 1024m
2019-03-25 09:47:44,697 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.heap.size, 1024m
2019-03-25 09:47:44,697 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: taskmanager.numberOfTaskSlots, 4
2019-03-25 09:47:44,698 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: parallelism.default, 1
2019-03-25 09:47:44,698 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: state.savepoints.dir, file:///tmp/savepoint
2019-03-25 09:47:44,698 INFO  org.apache.flink.configuration.GlobalConfiguration            - Loading configuration property: rest.port, 8081
2019-03-25 09:47:44,717 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - Found Yarn properties file under /tmp/.yarn-properties-admin.
2019-03-25 09:47:45,041 INFO  org.apache.hadoop.yarn.client.RMProxy                         - Connecting to ResourceManager at z05c05217.sqa.zth.tbsite.net/11.163.188.29:8050
2019-03-25 09:47:45,098 WARN  org.apache.hadoop.util.NativeCodeLoader                       - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2019-03-25 09:47:45,266 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2019-03-25 09:47:45,275 INFO  org.apache.flink.yarn.cli.FlinkYarnSessionCli                 - The argument yn is deprecated in will be ignored.
2019-03-25 09:47:45,357 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Cluster specification: ClusterSpecification{masterMemoryMB=1024, taskManagerMemoryMB=1024, numberTaskManagers=2, slotsPerTaskManager=2}
2019-03-25 09:47:45,711 WARN  org.apache.hadoop.hdfs.shortcircuit.DomainSocketFactory       - The short-circuit local reads feature cannot be used because libhadoop cannot be loaded.
2019-03-25 09:47:45,718 WARN  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - The configuration directory ('/home/admin/flink/flink-1.7.2/conf') contains both LOG4J and Logback configuration files. Please delete or rename one of them.
2019-03-25 09:47:46,514 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Submitting application master application_1532332183347_0710
2019-03-25 09:47:46,534 INFO  org.apache.hadoop.yarn.client.api.impl.YarnClientImpl         - Submitted application application_1532332183347_0710
2019-03-25 09:47:46,534 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Waiting for the cluster to be allocated
2019-03-25 09:47:46,535 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - Deploying cluster, current state ACCEPTED
2019-03-25 09:47:51,051 INFO  org.apache.flink.yarn.AbstractYarnClusterDescriptor           - YARN application has been deployed successfully.
2019-03-25 09:47:51,222 INFO  org.apache.flink.runtime.rest.RestClient                      - Rest client endpoint started.

Connecting to Flink cluster (host: 10.10.10.10, port: 56942).


按 CTRL + C 退出 Shell 后，这个 Flink cluster 还会继续运行，不会退出。

2.2.2 Execute

DataSet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
➜  flink-1.7.2 bin/stop-cluster.sh
No taskexecutor daemon to stop on host zkb-MBP.local.
No standalonesession daemon to stop on host zkb-MBP.local.
➜  flink-1.7.2 bin/start-scala-shell.sh local
Starting Flink Shell:
Starting local Flink cluster (host: localhost, port: 8081).
Connecting to Flink cluster (host: localhost, port: 8081).

scala> val text = benv.fromElements("To be, or not to be,--that is the question:--")
text: org.apache.flink.api.scala.DataSet[String] = org.apache.flink.api.scala.DataSet@5b407336

scala> val counts = text.flatMap { _.toLowerCase.split("\\W+") }.map { (_, 1) }.groupBy(0).sum(1)
counts: org.apache.flink.api.scala.AggregateDataSet[(String, Int)] = org.apache.flink.api.scala.AggregateDataSet@6ee34fe4

scala> counts.print()
(be,2)
(is,1)
(not,1)
(or,1)
(question,1)
(that,1)
(the,1)
(to,2)

对 DataSet 任务来说，print() 会触发任务的执行。


也可以将结果输出到文件（先删除 /tmp/out1，不然会报错同名文件已经存在），继续执行以下命令：

1
2
3
4
5
scala> counts.writeAsText("/tmp/out1")
res1: org.apache.flink.api.java.operators.DataSink[(String, Int)] = DataSink '<unnamed>' (TextOutputFormat (/tmp/out1) - UTF-8)

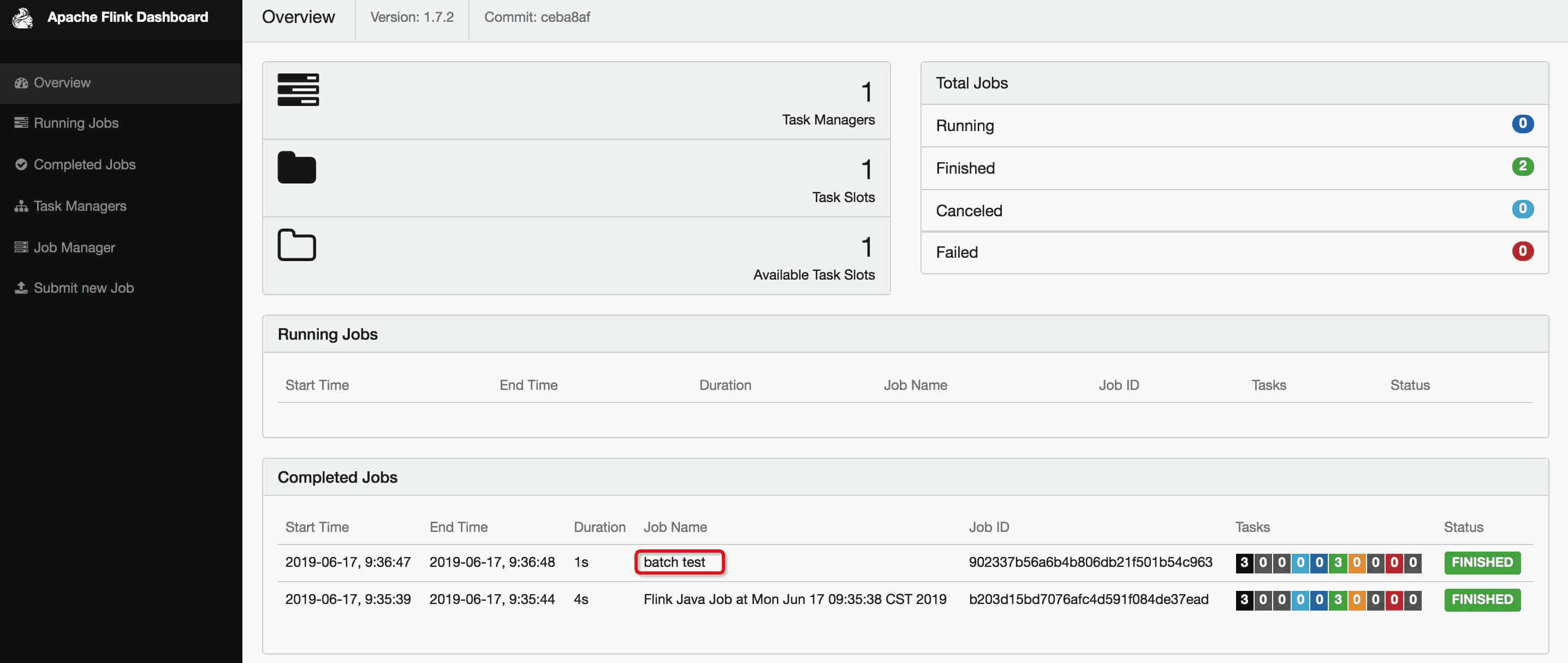

scala> benv.execute("batch test")
res2: org.apache.flink.api.common.JobExecutionResult = org.apache.flink.api.common.JobExecutionResult@737652a9

查看 /tmp/out1 文件就能看到输出结果。

1
2
3
4
5
6
7
8
9
➜  flink-1.7.2 cat /tmp/out1
(be,2)
(is,1)
(not,1)
(or,1)
(question,1)
(that,1)
(the,1)
(to,2)


DataStream
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
scala> val textStreaming = senv.fromElements("To be, or not to be,--that is the question:--")
textStreaming: org.apache.flink.streaming.api.scala.DataStream[String] = org.apache.flink.streaming.api.scala.DataStream@4970b93d

scala> val countsStreaming = textStreaming.flatMap { _.toLowerCase.split("\\W+") }.map { (_, 1) }.keyBy(0).sum(1)
countsStreaming: org.apache.flink.streaming.api.scala.DataStream[(String, Int)] = org.apache.flink.streaming.api.scala.DataStream@6a478680

scala> countsStreaming.print()
res3: org.apache.flink.streaming.api.datastream.DataStreamSink[(String, Int)] = org.apache.flink.streaming.api.datastream.DataStreamSink@42bfc11f

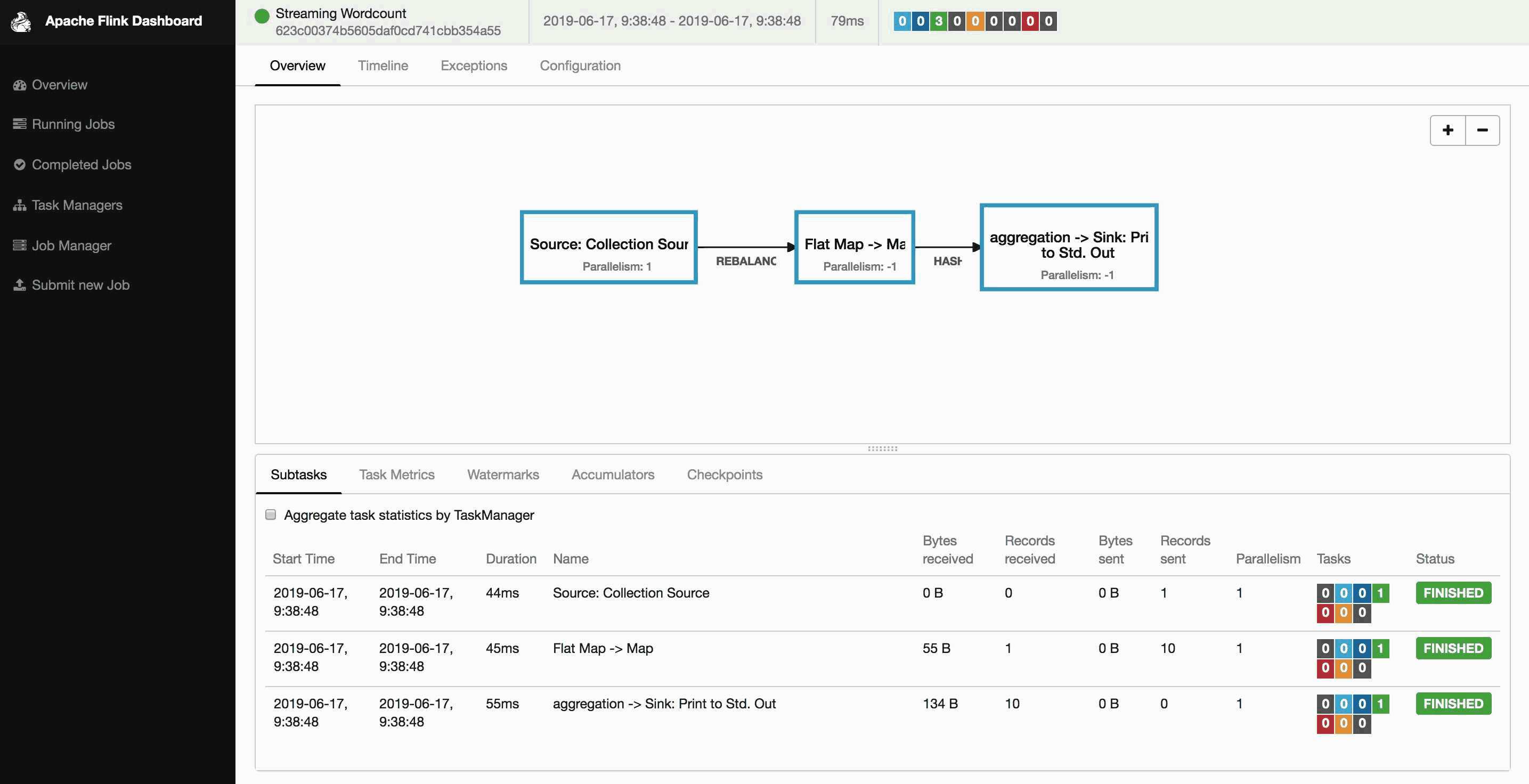

scala> senv.execute("Streaming Wordcount")
(to,1)
(be,1)
(or,1)
(not,1)
(to,2)
(be,2)
(that,1)
(is,1)
(the,1)
(question,1)
res4: org.apache.flink.api.common.JobExecutionResult = org.apache.flink.api.common.JobExecutionResult@1878815a

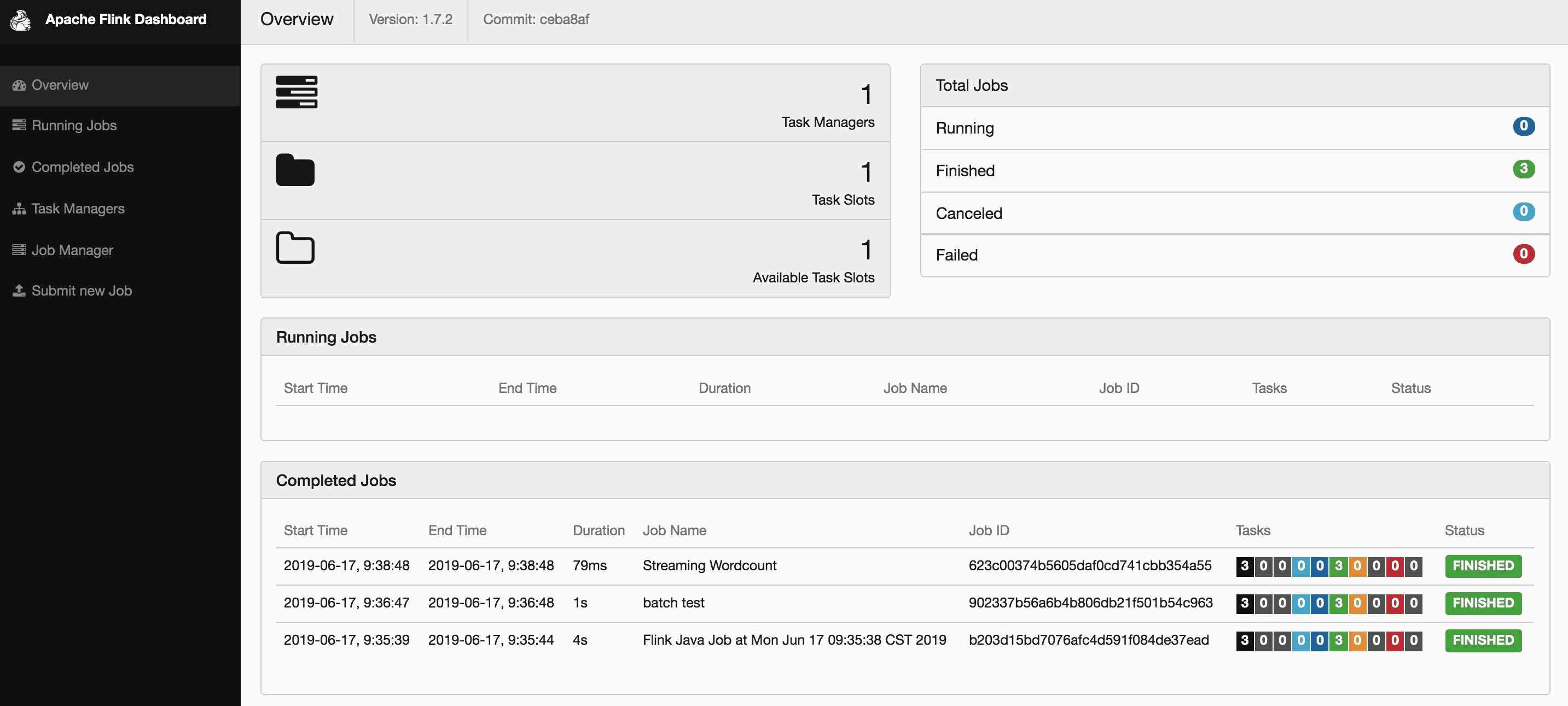

对 DataStream 任务，print() 并不会触发任务的执行，需要显示调用 execute(“job name”) 才会执行任务。



TableAPI

在 Blink 开源版本里面，支持了 TableAPI 方式提交任务（可以用 btenv.sqlQuery 提交 SQL 查询），社区版本 Flink 1.8 会支持 TableAPI: https://issues.apache.org/jira/browse/FLINK-9555

2.3 SQL Client Beta

SQL Client 目前还只是测试版，处于开发阶段，只能用于 SQL 的原型验证，不推荐在生产环境使用。

2.3.1 基本用法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
➜  flink-1.7.2 bin/start-cluster.sh
Starting cluster.
Starting standalonesession daemon on host zkb-MBP.local.
Starting taskexecutor daemon on host zkb-MBP.local.

➜  flink-1.7.2 ./bin/sql-client.sh embedded
No default environment specified.
Searching for '/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf/sql-client-defaults.yaml'...found.
Reading default environment from: file:/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf/sql-client-defaults.yaml
No session environment specified.
Validating current environment...done.
… …

Flink SQL> help;
The following commands are available:

QUIT		Quits the SQL CLI client.
CLEAR		Clears the current terminal.
HELP		Prints the available commands.
SHOW TABLES		Shows all registered tables.
SHOW FUNCTIONS		Shows all registered user-defined functions.
DESCRIBE		Describes the schema of a table with the given name.
EXPLAIN		Describes the execution plan of a query or table with the given name.
SELECT		Executes a SQL SELECT query on the Flink cluster.
INSERT INTO		Inserts the results of a SQL SELECT query into a declared table sink.
CREATE VIEW		Creates a virtual table from a SQL query. Syntax: 'CREATE VIEW <name> AS <query>;'
DROP VIEW		Deletes a previously created virtual table. Syntax: 'DROP VIEW <name>;'
SOURCE		Reads a SQL SELECT query from a file and executes it on the Flink cluster.
SET		Sets a session configuration property. Syntax: 'SET <key>=<value>;'. Use 'SET;' for listing all properties.
RESET		Resets all session configuration properties.

Hint: Make sure that a statement ends with ';' for finalizing (multi-line) statements.
Select 查询
1

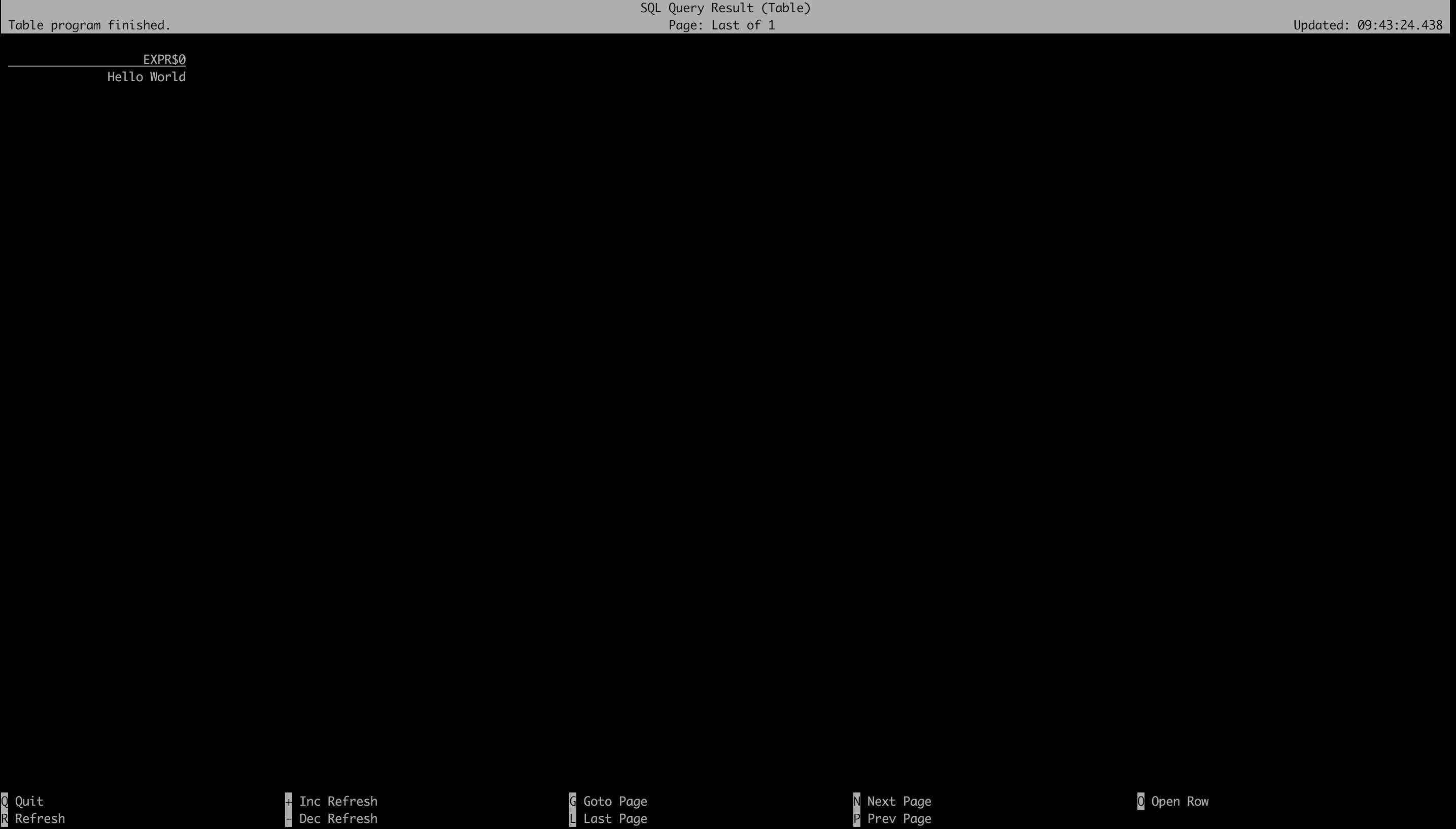

Flink SQL> SELECT 'Hello World';


按 “Q” 退出这个界面

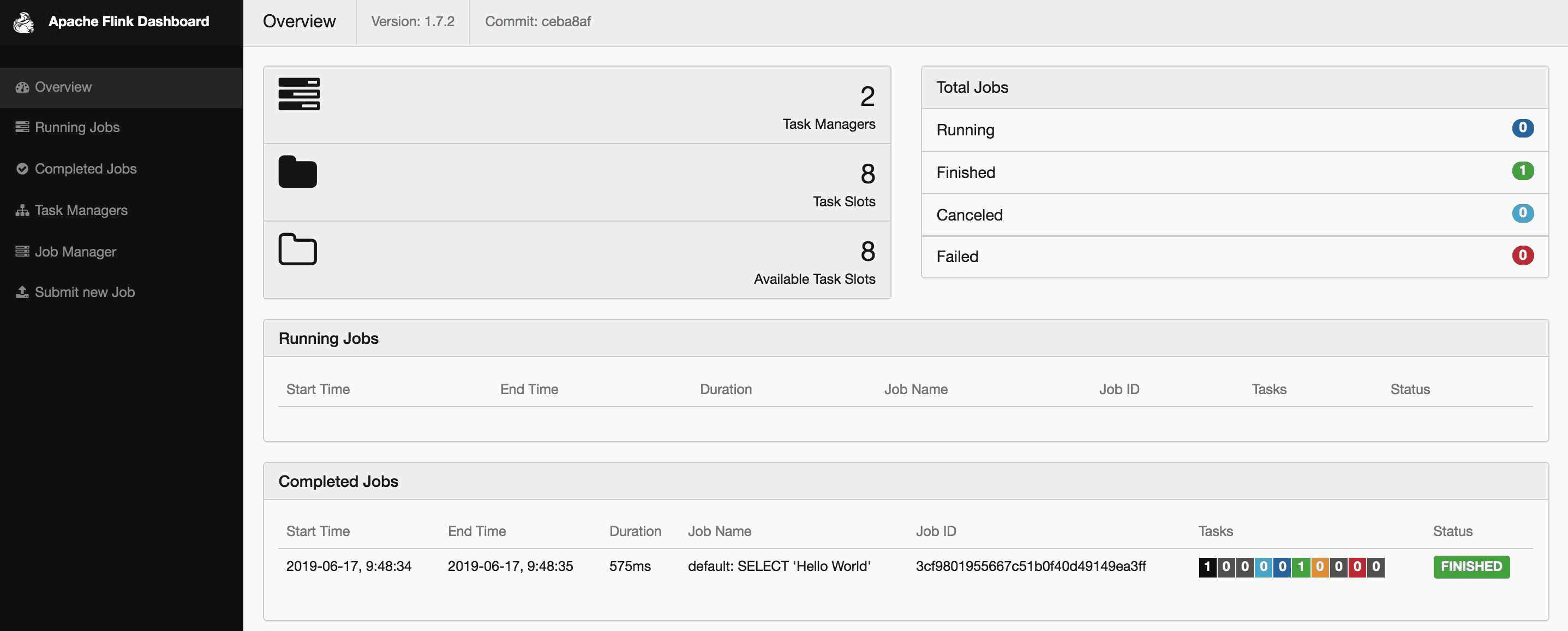

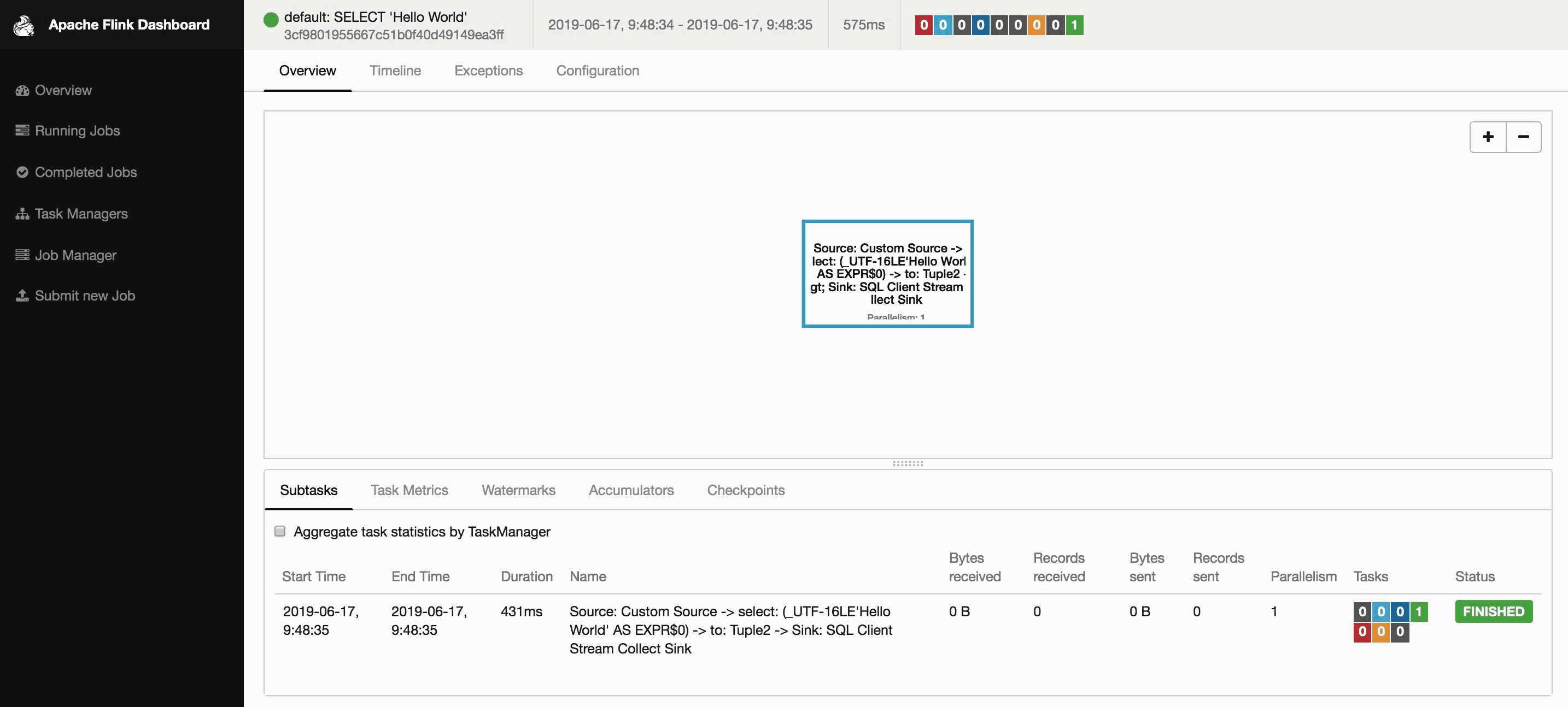

打开 http://127.0.0.1:8081 能看到这条 Select 语句产生的查询任务已经结束了。这个查询采用的是读取固定数据集的 Custom Source，输出用的是 Stream Collect Sink，且只输出一条结果。

注意：如果本机的临时目录存在类似 .yarn-properties-baoniu 的文件，任务会提交到 Yarn 上。



Explain

Explain 命令可以查看 SQL 的执行计划。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Flink SQL> explain SELECT name, COUNT(*) AS cnt FROM (VALUES ('Bob'), ('Alice'), ('Greg'), ('Bob')) AS NameTable(name) GROUP BY name;

== Abstract Syntax Tree ==        // 抽象语法树
LogicalAggregate(group=[{0}], cnt=[COUNT()])
  LogicalValues(tuples=[[{ _UTF-16LE'Bob  ' }, { _UTF-16LE'Alice' }, { _UTF-16LE'Greg ' }, { _UTF-16LE'Bob  ' }]])

== Optimized Logical Plan ==     // 优化后的逻辑执行计划
DataStreamGroupAggregate(groupBy=[name], select=[name, COUNT(*) AS cnt])
  DataStreamValues(tuples=[[{ _UTF-16LE'Bob  ' }, { _UTF-16LE'Alice' }, { _UTF-16LE'Greg ' }, { _UTF-16LE'Bob  ' }]])

== Physical Execution Plan ==   // 物理执行计划
Stage 3 : Data Source
	content : collect elements with CollectionInputFormat

	Stage 5 : Operator
		content : groupBy: (name), select: (name, COUNT(*) AS cnt)
		ship_strategy : HASH

2.3.2 结果展示

SQL Client 支持两种模式来维护并展示查询结果：

  • table mode: 在内存中物化查询结果，并以分页 table 形式展示。用户可以通过以下命令启用 table mode;
1
SET execution.result-mode=table
  • changlog mode: 不会物化查询结果，而是直接对 continuous query 产生的添加和撤回（retractions）结果进行展示。
1
SET execution.result-mode=changelog

接下来通过实际的例子进行演示。

Table mode
1
2
3
4
Flink SQL> SET execution.result-mode=table;
[INFO] Session property has been set.

Flink SQL> SELECT name, COUNT(*) AS cnt FROM (VALUES ('Bob'), ('Alice'), ('Greg'), ('Bob')) AS NameTable(name) GROUP BY name;

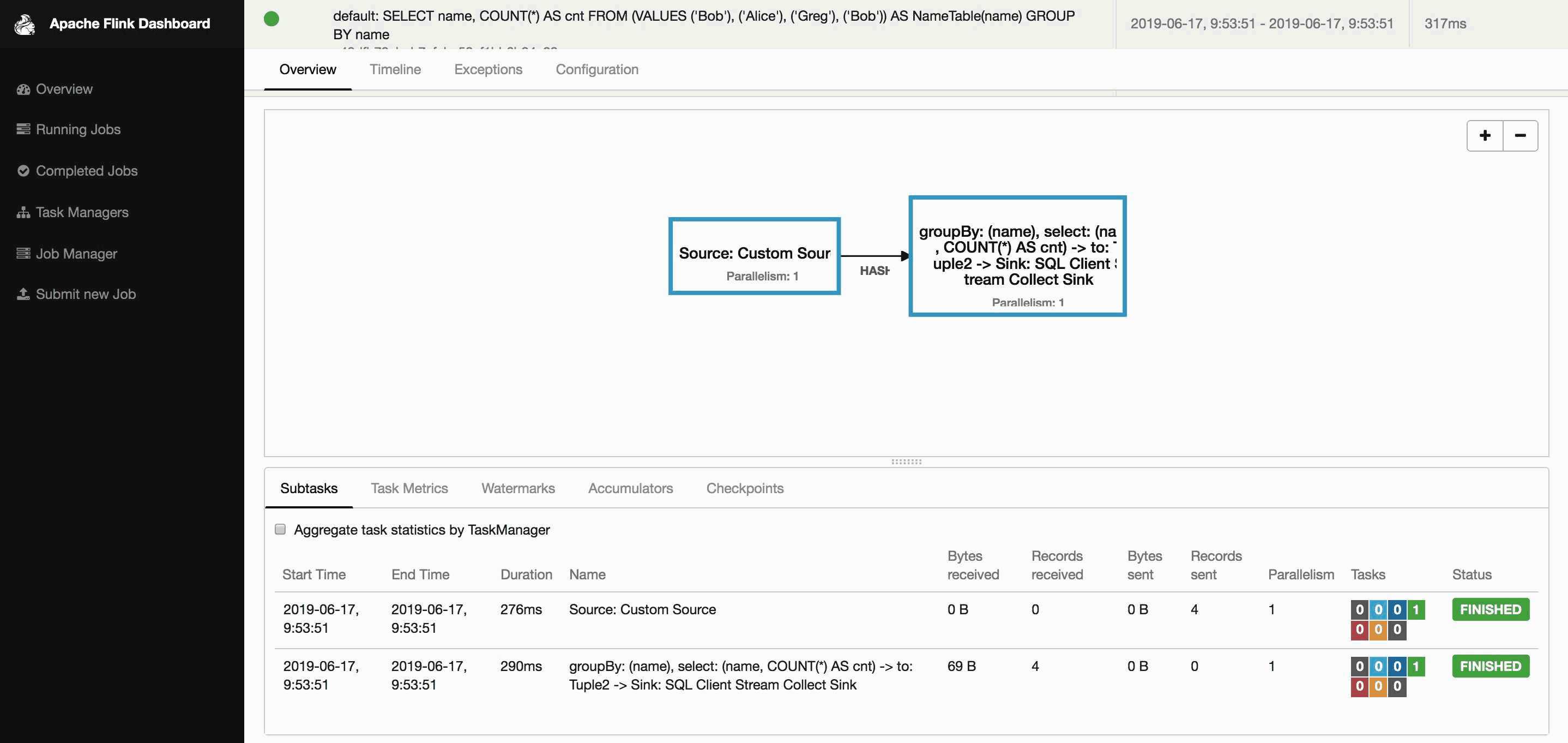

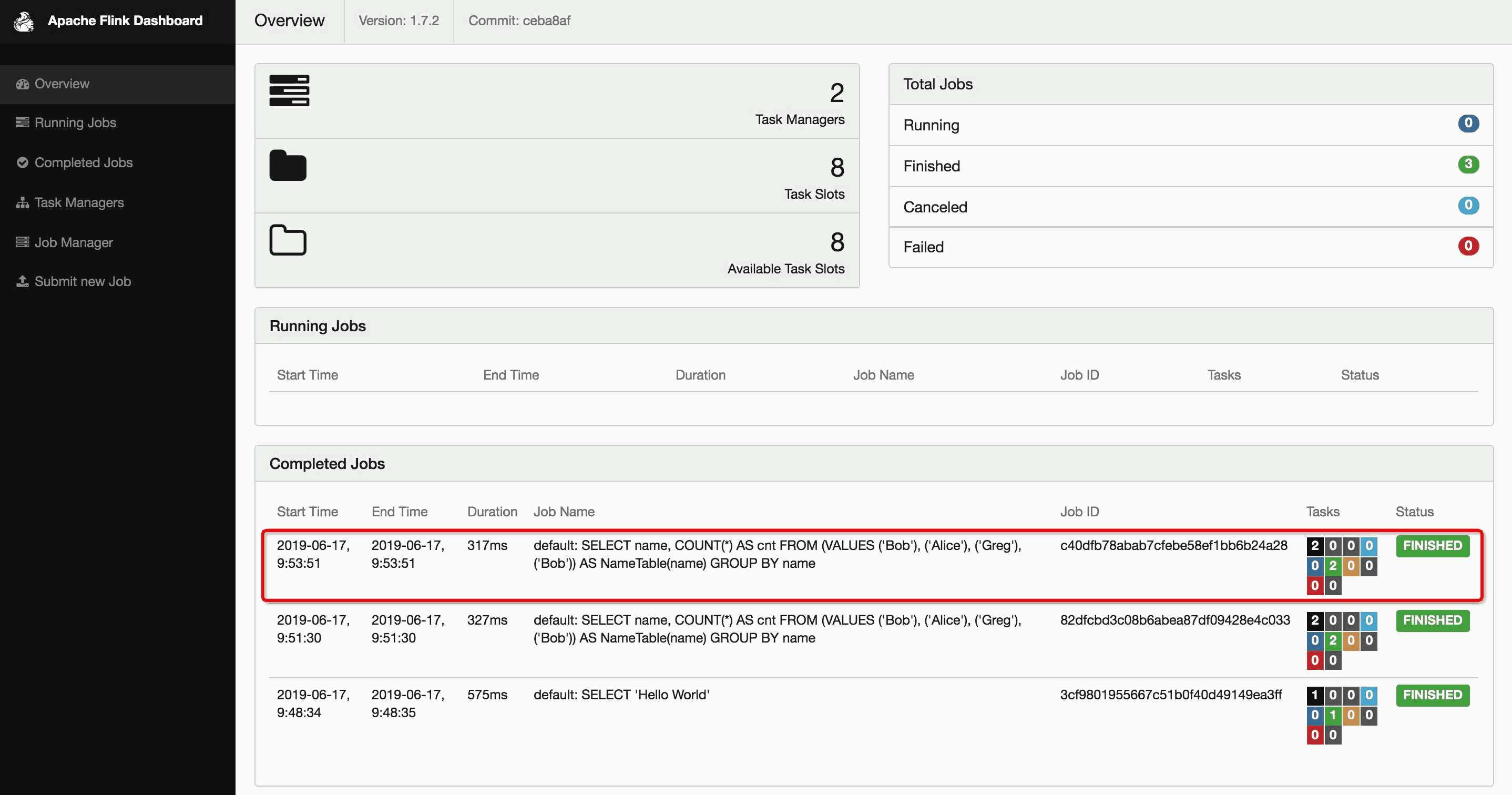

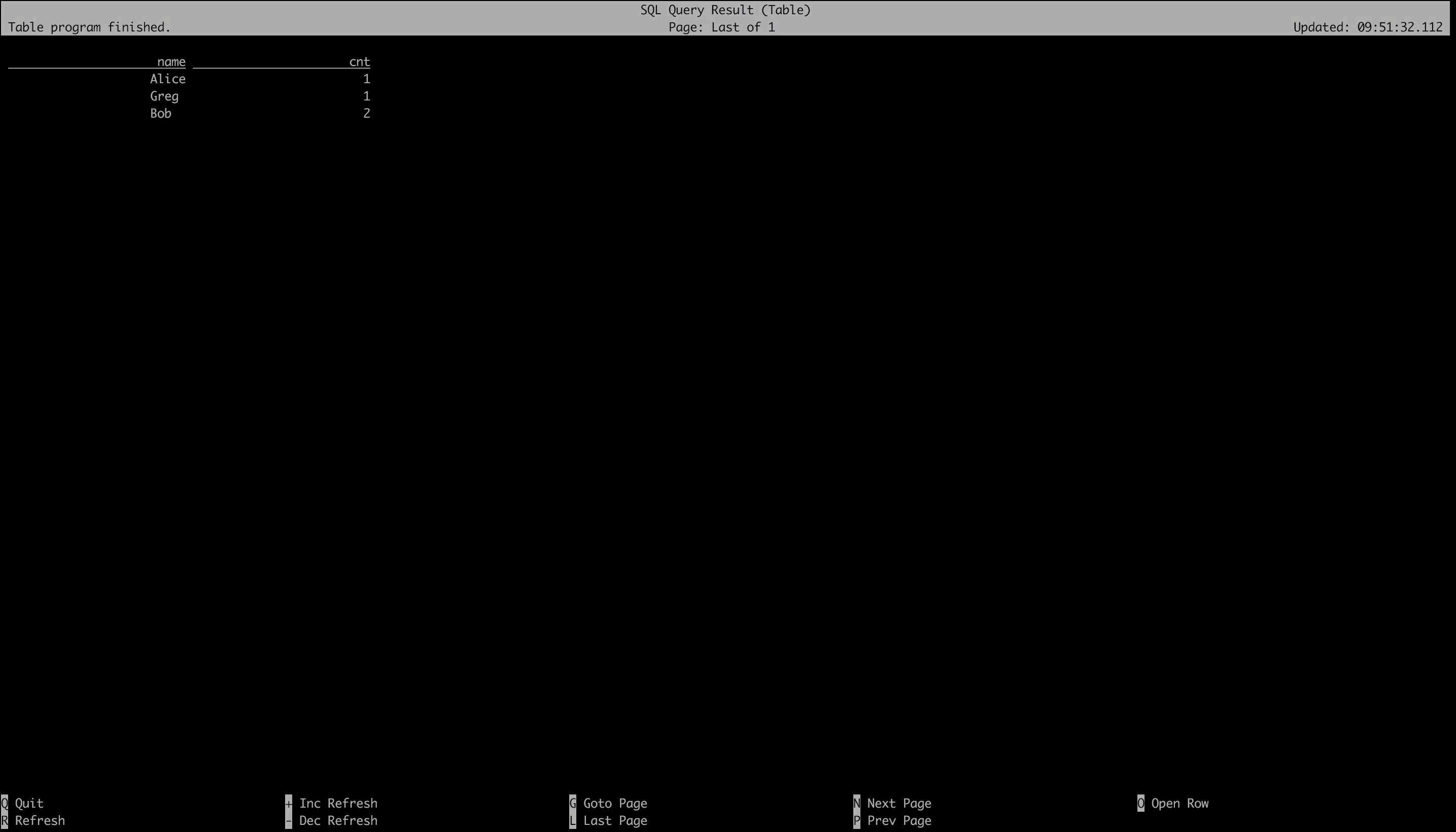

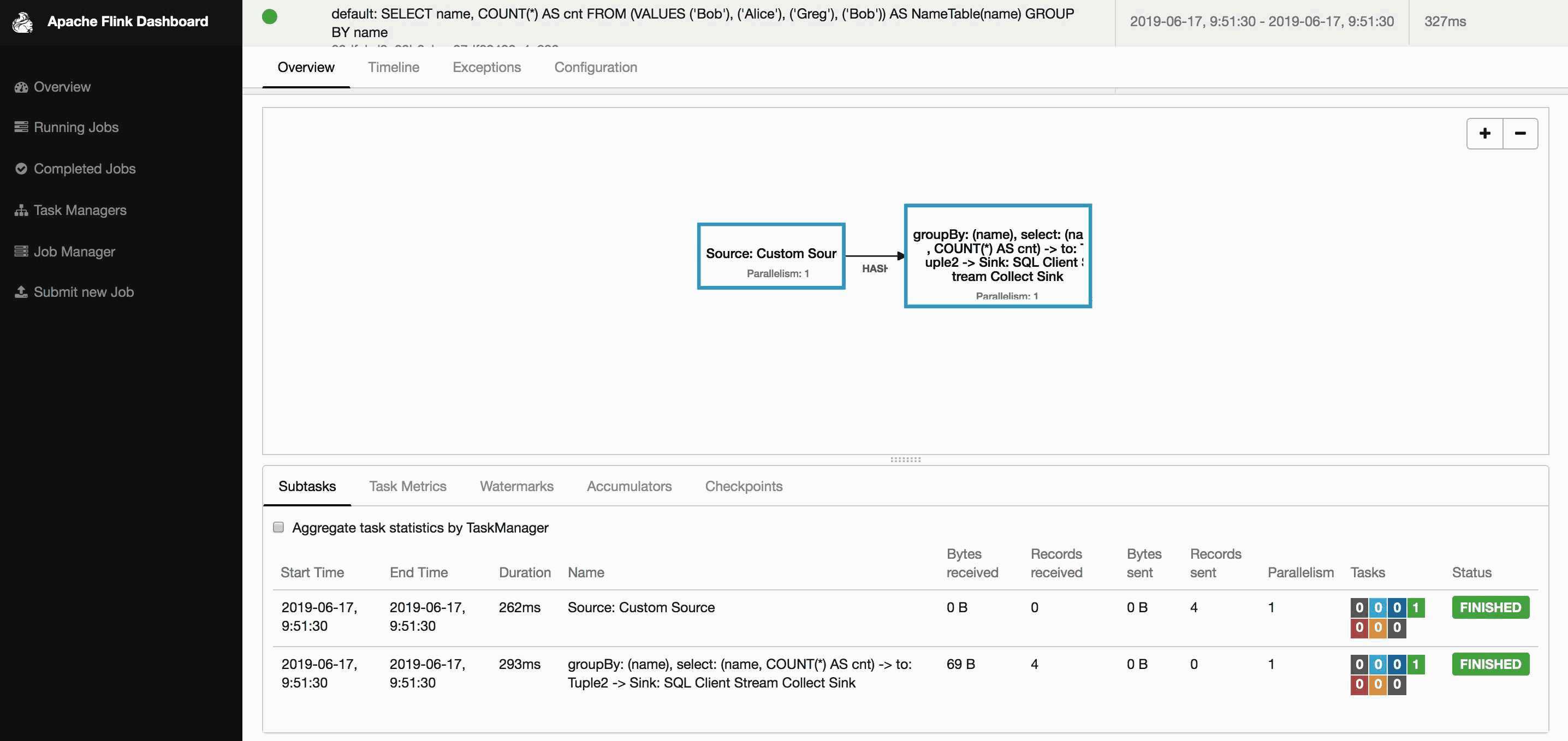

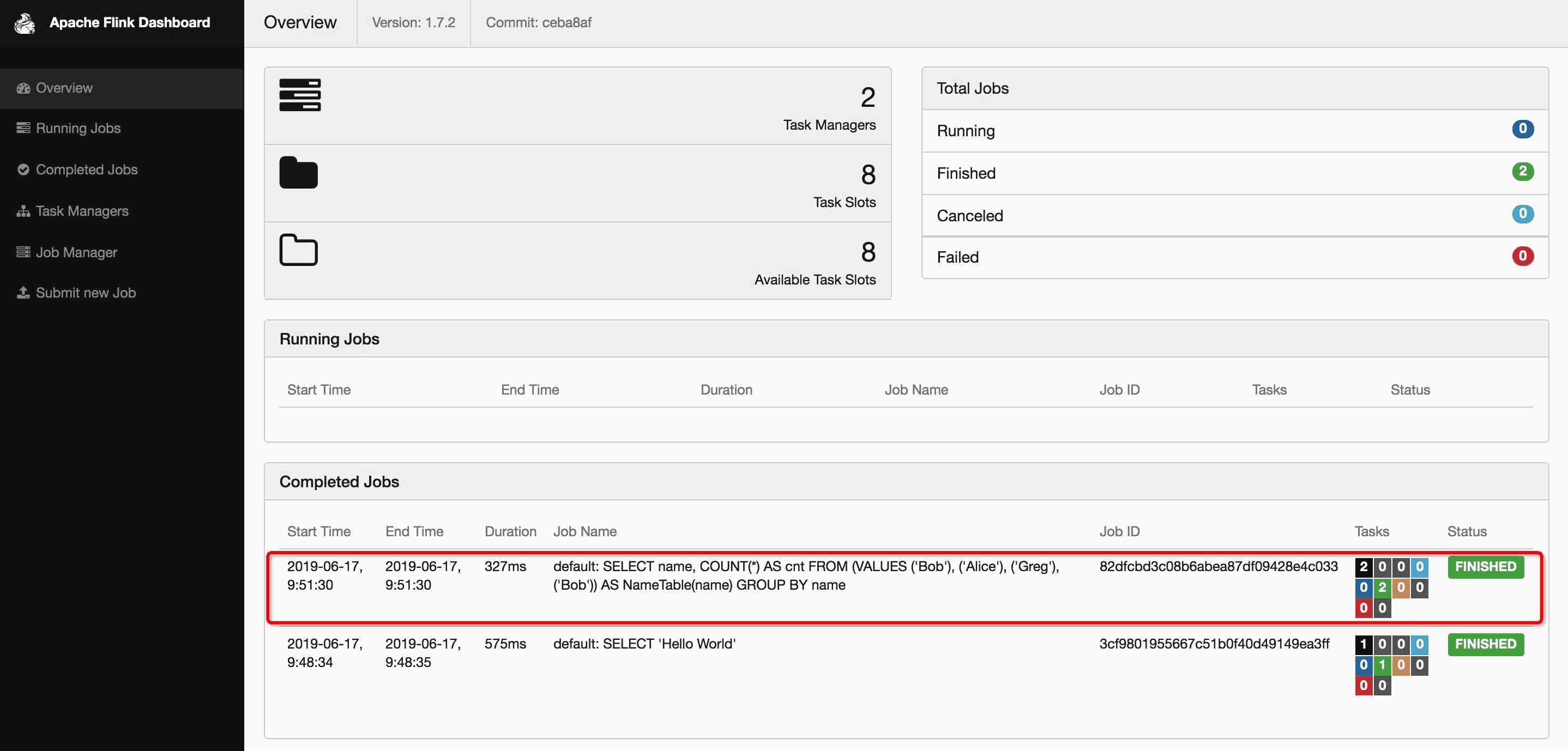

运行结果如下图所示：




Changlog mode
1
2
3
4
Flink SQL> SET execution.result-mode=changelog;
[INFO] Session property has been set.

Flink SQL> SELECT name, COUNT(*) AS cnt FROM (VALUES ('Bob'), ('Alice'), ('Greg'), ('Bob')) AS NameTable(name) GROUP BY name;

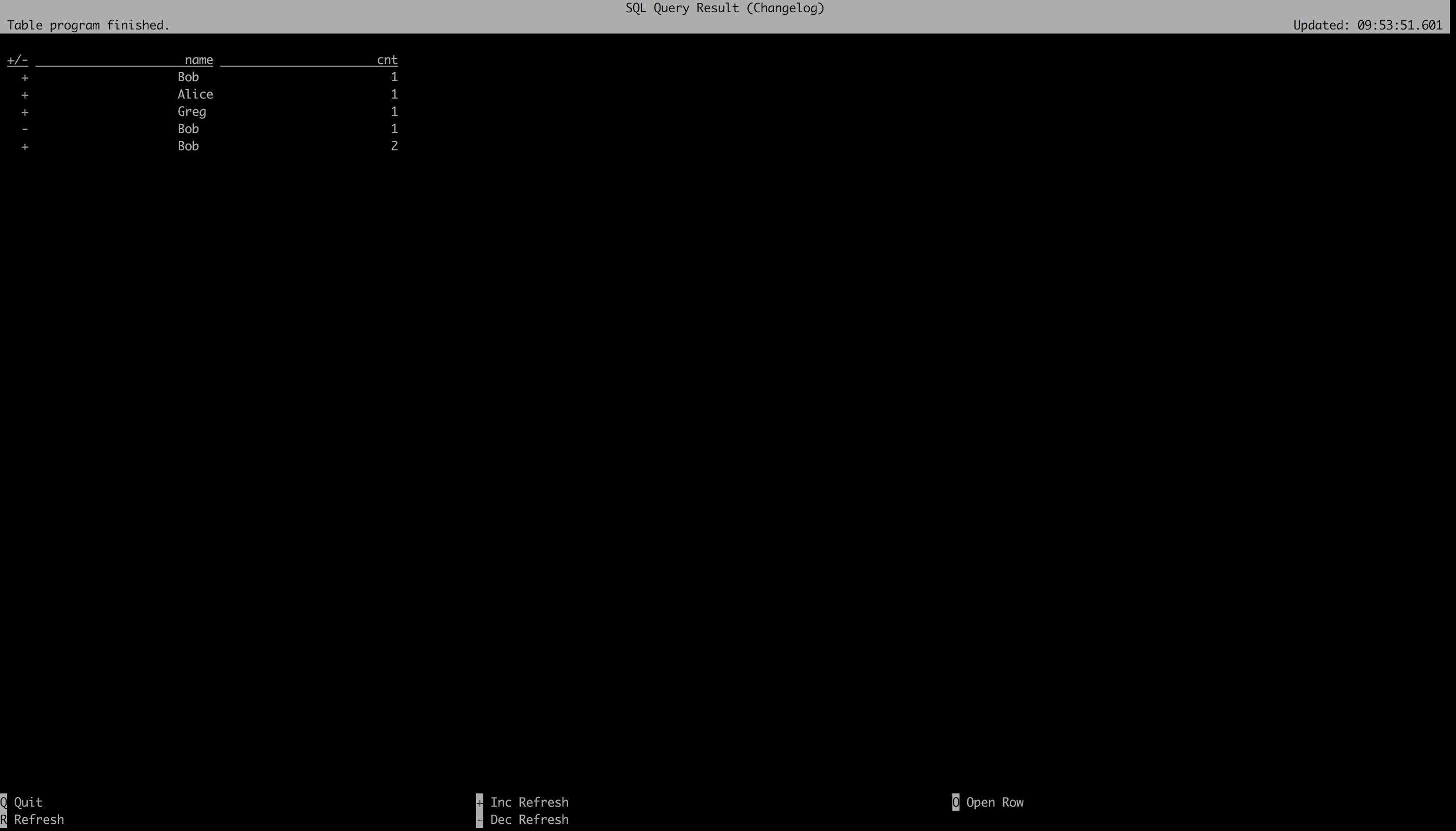

运行结果如下图所示：


其中 ‘-’ 代表的就是撤回消息。



2.3.3 Environment Files

目前的 SQL Client 还不支持 DDL 语句，只能通过 yaml 文件的方式来定义 SQL 查询需要的表，UDF 和运行参数等信息。

首先，准备 env.yaml 和 input.csv 两个文件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
➜  flink-1.7.2 cat /tmp/env.yaml
tables:
  - name: MyTableSource
    type: source-table
    update-mode: append
    connector:
      type: filesystem
      path: "/tmp/input.csv"
    format:
      type: csv
      fields:
        - name: MyField1
          type: INT
        - name: MyField2
          type: VARCHAR
      line-delimiter: "\n"
      comment-prefix: "#"
    schema:
      - name: MyField1
        type: INT
      - name: MyField2
        type: VARCHAR
  - name: MyCustomView
    type: view
    query: "SELECT MyField2 FROM MyTableSource"
  - name: MyTableSink
    type: sink-table
    update-mode: append
    connector:
      type: filesystem
      path: "/tmp/output.csv"
    format:
      type: csv
      fields:
        - name: MyField1
          type: INT
        - name: MyField2
          type: VARCHAR
    schema:
      - name: MyField1
        type: INT
      - name: MyField2
        type: VARCHAR

# Execution properties allow for changing the behavior of a table program.

execution:
  type: streaming                   # required: execution mode either 'batch' or 'streaming'
  result-mode: table                # required: either 'table' or 'changelog'
  max-table-result-rows: 1000000    # optional: maximum number of maintained rows in
                                    #   'table' mode (1000000 by default, smaller 1 means unlimited)
  time-characteristic: event-time   # optional: 'processing-time' or 'event-time' (default)
  parallelism: 1                    # optional: Flink's parallelism (1 by default)
  periodic-watermarks-interval: 200 # optional: interval for periodic watermarks (200 ms by default)
  max-parallelism: 16               # optional: Flink's maximum parallelism (128 by default)
  min-idle-state-retention: 0       # optional: table program's minimum idle state time
  max-idle-state-retention: 0       # optional: table program's maximum idle state time
  restart-strategy:                 # optional: restart strategy
    type: fallback                  #   "fallback" to global restart strategy by default

# Deployment properties allow for describing the cluster to which table programs are submitted to.

deployment:
  response-timeout: 5000

➜  flink-1.7.2 cat /tmp/input.csv
1,hello
2,world
3,hello world
1,ok
3,bye bye
4,yes

启动 SQL Client：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
➜  flink-1.7.2 ./bin/sql-client.sh embedded -e /tmp/env.yaml
No default environment specified.
Searching for '/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf/sql-client-defaults.yaml'...found.
Reading default environment from: file:/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/conf/sql-client-defaults.yaml
Reading session environment from: file:/tmp/env.yaml
Validating current environment...done.

Flink SQL> show tables;
MyCustomView
MyTableSink
MyTableSource

Flink SQL> describe MyTableSource;
root
 |-- MyField1: Integer
 |-- MyField2: String

Flink SQL> describe MyCustomView;
root
 |-- MyField2: String

Flink SQL> create view MyView1 as select MyField1 from MyTableSource;
[INFO] View has been created.

Flink SQL> show tables;
MyCustomView
MyTableSource
MyView1

Flink SQL> describe MyView1;
root
 |-- MyField1: Integer

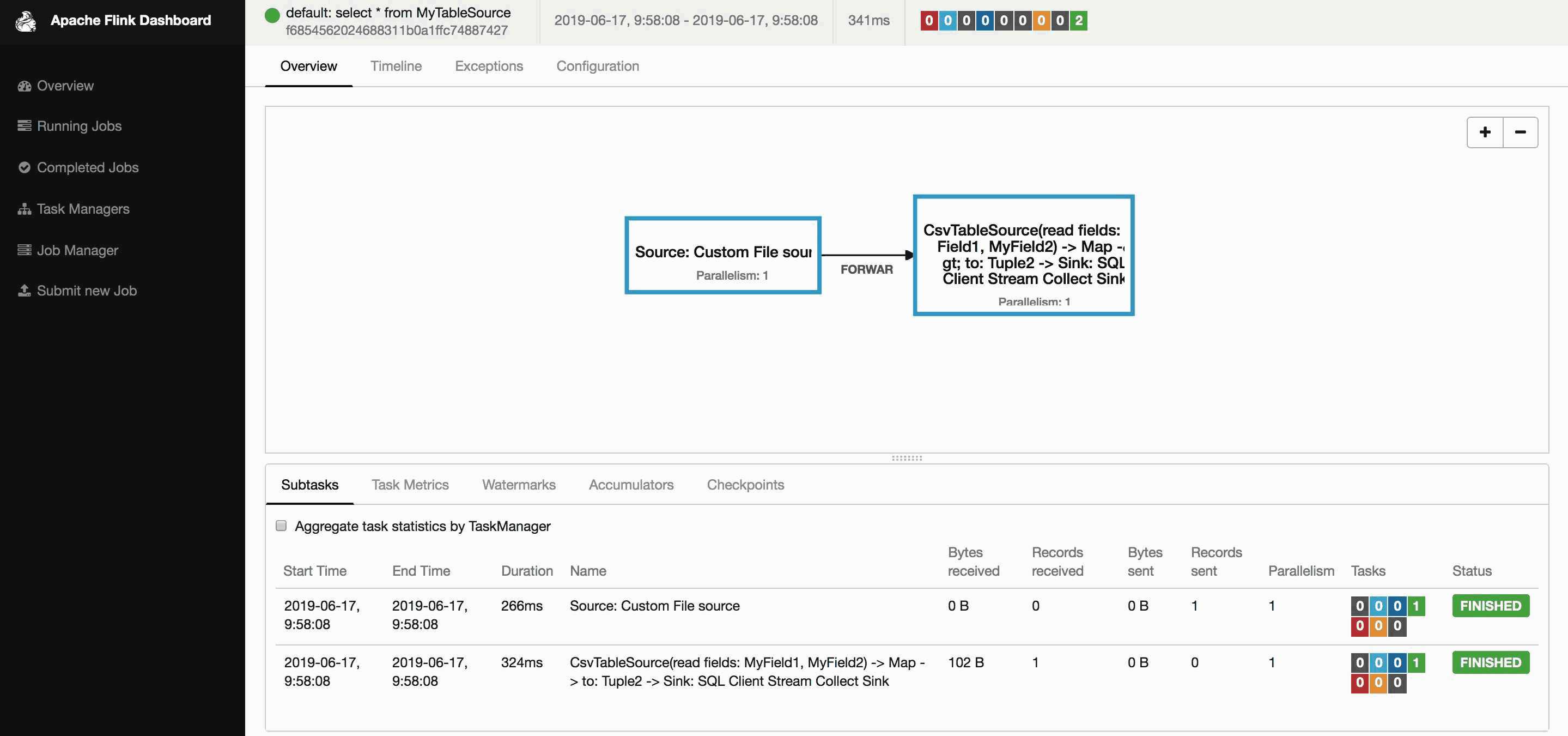

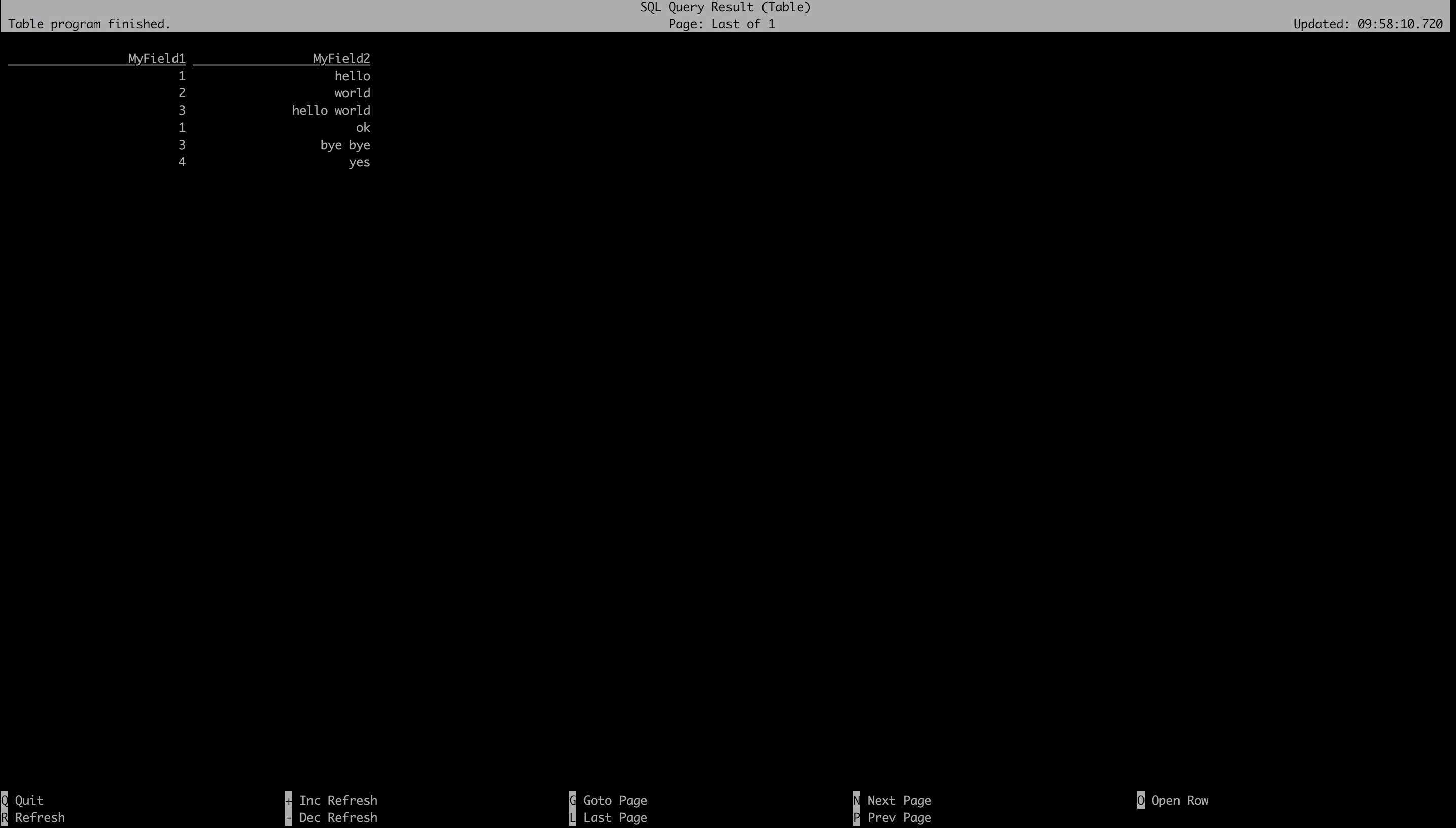

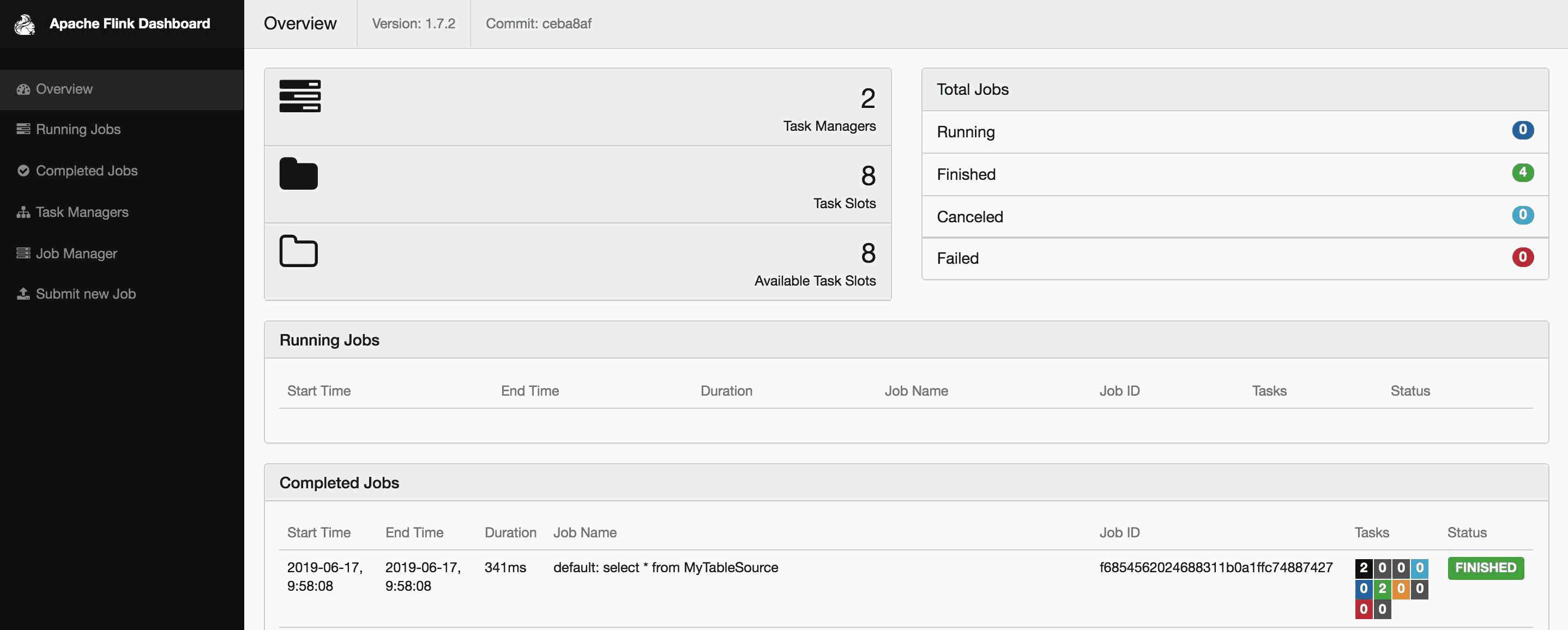

Flink SQL> select * from MyTableSource;




使用 insert into 写入结果表：

1
2
3
4
5
6

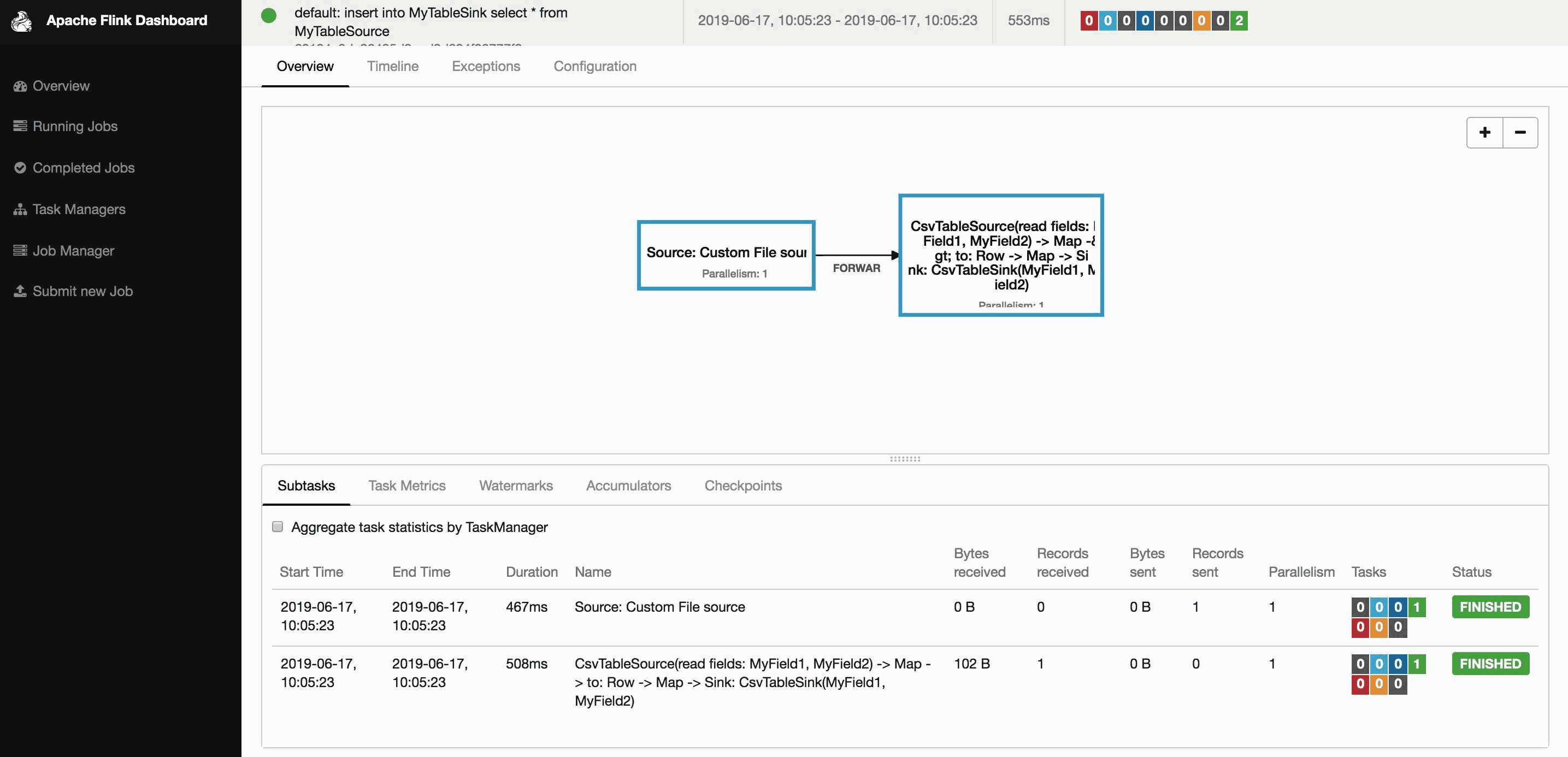

Flink SQL> insert into MyTableSink select * from MyTableSource;
[INFO] Submitting SQL update statement to the cluster...
[INFO] Table update statement has been successfully submitted to the cluster:
Cluster ID: StandaloneClusterId
Job ID: 3fac2be1fd891e3e07595c684bb7b7a0
Web interface: http://localhost:8081



查询生成的结果数据文件：

1
2
3
4
5
6
7
➜  flink-1.7.2 cat /tmp/output.csv
1,hello
2,world
3,hello world
1,ok
3,bye bye
4,yes

也可以在 Environment 文件里面定义 UDF，在 SQL Client 里面通过 「HOW FUNCTIONS」查询和使用，这里就不再说明了。

SQL Client 功能社区还在开发中，详见 FLIP-24。

2.4 Restful API

接下来我们演示如何通过 Rest API 来提交 Jar 包和执行任务。

更详细的操作请参考 Flink 的 Restful API 文档：https://ci.apache.org/projects/flink/flink-docs-stable/monitoring/rest_api.html

1
2
3
4
5
6
7
8
9
10
11
➜  flink-1.7.2 curl http://127.0.0.1:8081/overview
{"taskmanagers":1,"slots-total":4,"slots-available":0,"jobs-running":3,"jobs-finished":0,"jobs-cancelled":0,"jobs-failed":0,"flink-version":"1.7.2","flink-commit":"ceba8af"}%

➜  flink-1.7.2 curl -X POST -H "Expect:" -F "jarfile=@/Users/baoniu/Documents/work/tool/flink/flink-1.7.2/examples/streaming/TopSpeedWindowing.jar" http://127.0.0.1:8081/jars/upload
{"filename":"/var/folders/2b/r6d49pcs23z43b8fqsyz885c0000gn/T/flink-web-124c4895-cf08-4eec-8e15-8263d347efc2/flink-web-upload/6077eca7-6db0-4570-a4d0-4c3e05a5dc59_TopSpeedWindowing.jar","status":"success"}%
                                                                                                                                                                                                   ➜  flink-1.7.2 curl http://127.0.0.1:8081/jars
{"address":"http://localhost:8081","files":[{"id":"6077eca7-6db0-4570-a4d0-4c3e05a5dc59_TopSpeedWindowing.jar","name":"TopSpeedWindowing.jar","uploaded":1553743438000,"entry":[{"name":"org.apache.flink.streaming.examples.windowing.TopSpeedWindowing","description":null}]}]}%

➜  flink-1.7.2 curl http://127.0.0.1:8081/jars/6077eca7-6db0-4570-a4d0-4c3e05a5dc59_TopSpeedWindowing.jar/plan
{"plan":{"jid":"41029eb3feb9132619e454ec9b2a89fb","name":"CarTopSpeedWindowingExample","nodes":[{"id":"90bea66de1c231edf33913ecd54406c1","parallelism":1,"operator":"","operator_strategy":"","description":"Window(GlobalWindows(), DeltaTrigger, TimeEvictor, ComparableAggregator, PassThroughWindowFunction) -&gt; Sink: Print to Std. Out","inputs":[{"num":0,"id":"cbc357ccb763df2852fee8c4fc7d55f2","ship_strategy":"HASH","exchange":"pipelined_bounded"}],"optimizer_properties":{}},{"id":"cbc357ccb763df2852fee8c4fc7d55f2","parallelism":1,"operator":"","operator_strategy":"","description":"Source: Custom Source -&gt; Timestamps/Watermarks","optimizer_properties":{}}]}}%                                                                                                                                                    ➜  flink-1.7.2 curl -X POST http://127.0.0.1:8081/jars/6077eca7-6db0-4570-a4d0-4c3e05a5dc59_TopSpeedWindowing.jar/run
{"jobid":"04d80a24b076523d3dc5fbaa0ad5e1ad"}%



Restful API 还提供了很多监控和 Metrics 相关的功能，对于任务提交的操作也支持的比较全面。

2.5 Web

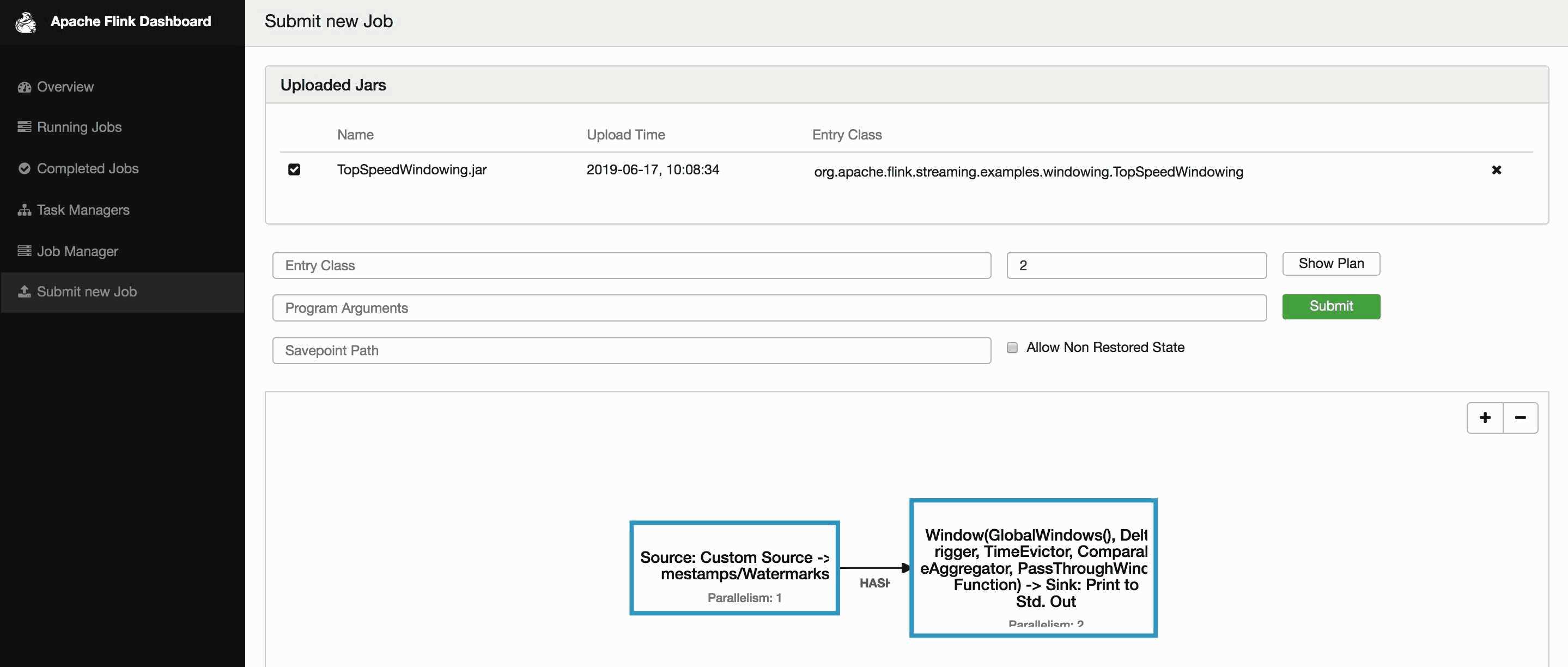

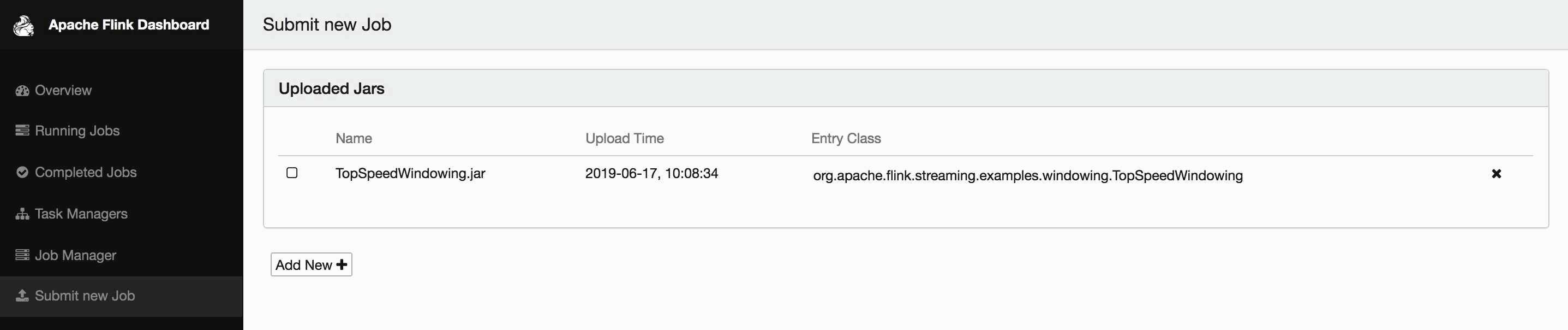

在 Flink Dashboard 页面左侧可以看到有个「Submit new Job」的地方，用户可以上传 Jar 包和显示执行计划和提交任务。Web 提交功能主要用于新手入门和演示用。


3. 结语

本文主要讲解了 Flink 的 5 种任务提交的方式。熟练掌握各种任务提交方式，有利于提高我们日常的开发和运维效率。

转载声明：商业转载请联系作者获得授权,非商业转载请注明出处 © Ljjyy.com
Copyright © 2019-2024 Ljjyy.com | 关于我们 | 网站地图 | 时间轴
