一. 什么是Table API

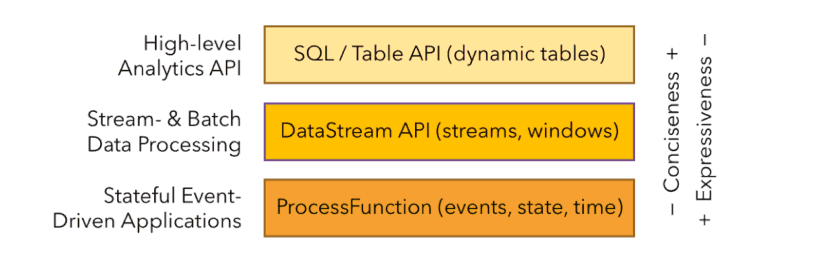

1.1 Flink API总览

首先：flink根据使用的便捷性提供了三种API，自下而上是：

Table API & SQL

1. 声明行：用户只关心做什么，不用关心怎么做

2. 高性能：支持性能优化，可以获取更好的执行性能

3. 流批统一：相同的统计逻辑，既可以流模式运行，也可以批模式运行

4. 性能稳定：语义遵循SQL标准，不易变动

5. 易理解：语义明确，所见即所得

Table API：tab.groupBy(“word”).select(“word,count(1) as count”)

SQL:SELECT word,COUNT(*) as cnt FROM MyTable GROUP BY word

1.2 Table API 特点

1、Table API使得多声明的数据处理起来比较容易

　　例如：我们把a大于10的数据存xxx的外部表，同时需要把a小于10的数据插入到外部表yyy，我们是使用TableAPI很方便。

　　　　Table.filter(a>10).insertInto(“xxx”)

　　　　Table.filter(a<10).insertInto(“yyy”)

2、TableAPI使得扩展标准SQL更容易（当且仅当需要的时候）

二. Table API 编程

2.1 WordCount示例

import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.java.StreamTableEnvironment;
import org.apache.flink.table.descriptors.FileSystem;
import org.apache.flink.table.descriptors.OldCsv;
import org.apache.flink.table.descriptors.Schema;
import org.apache.flink.types.Row;

public class JavaStreamWordCount {

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tEnv = TableEnvironment.getTableEnvironment(env);

        String path = JavaStreamWordCount.class.getClassLoader().getResource("words.txt").getPath();
        tEnv.connect(new FileSystem().path(path))
            .withFormat(new OldCsv().field("word", Types.STRING).lineDelimiter("\n"))
            .withSchema(new Schema().field("word", Types.STRING))
            .inAppendMode()
            .registerTableSource("fileSource");

        Table result = tEnv.scan("fileSource")
            .groupBy("word")
            .select("word, count(1) as count");

        tEnv.toRetractStream(result, Row.class).print();
        env.execute();
    }
}

import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.java.StreamTableEnvironment;
import org.apache.flink.table.descriptors.FileSystem;
import org.apache.flink.table.descriptors.OldCsv;
import org.apache.flink.table.descriptors.Schema;
import org.apache.flink.types.Row;

public class JavaStreamWordCount {

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tEnv = TableEnvironment.getTableEnvironment(env);

        String path = JavaStreamWordCount.class.getClassLoader().getResource("words.txt").getPath();
        tEnv.connect(new FileSystem().path(path))
            .withFormat(new OldCsv().field("word", Types.STRING).lineDelimiter("\n"))
            .withSchema(new Schema().field("word", Types.STRING))
            .inAppendMode()
            .registerTableSource("fileSource");

        Table result = tEnv.scan("fileSource")
            .groupBy("word")
            .select("word, count(1) as count");

        tEnv.toRetractStream(result, Row.class).print();
        env.execute();
    }
}

import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.java.BatchTableEnvironment;
import org.apache.flink.table.descriptors.FileSystem;
import org.apache.flink.table.descriptors.OldCsv;
import org.apache.flink.table.descriptors.Schema;
import org.apache.flink.types.Row;

public class JavaBatchWordCount {

    public static void main(String[] args) throws Exception {
        ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
        BatchTableEnvironment tEnv = BatchTableEnvironment.create(env);

        String path = JavaBatchWordCount.class.getClassLoader().getResource("words.txt").getPath();
        tEnv.connect(new FileSystem().path(path))
            .withFormat(new OldCsv().field("word", Types.STRING).lineDelimiter("\n"))
            .withSchema(new Schema().field("word", Types.STRING))
            .registerTableSource("fileSource");

        Table result = tEnv.scan("fileSource")
            .groupBy("word")
            .select("word, count(1) as count");

        tEnv.toDataSet(result, Row.class).print();
    }
}

参考：https://github.com/hequn8128/TableApiDemo

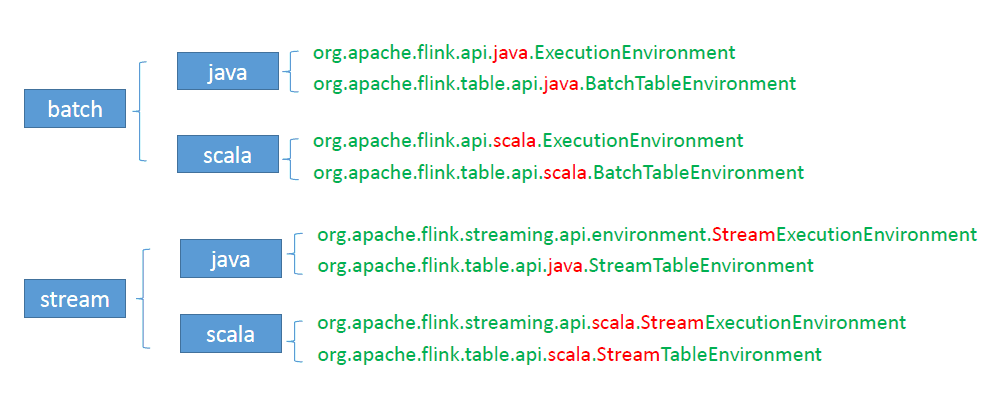

Environment

Table Environment使用优化
https://mail.google.com/mail/u/0/?tab=wm#search/label%3Aflink-dev+table+environment/FMfcgxvzMBlhTWVjxlzCnVZsLvvDkmph
https://cwiki.apache.org/confluence/display/FLINK/FLIP-32%3A+Restructure+flink-table+for+future+contributions

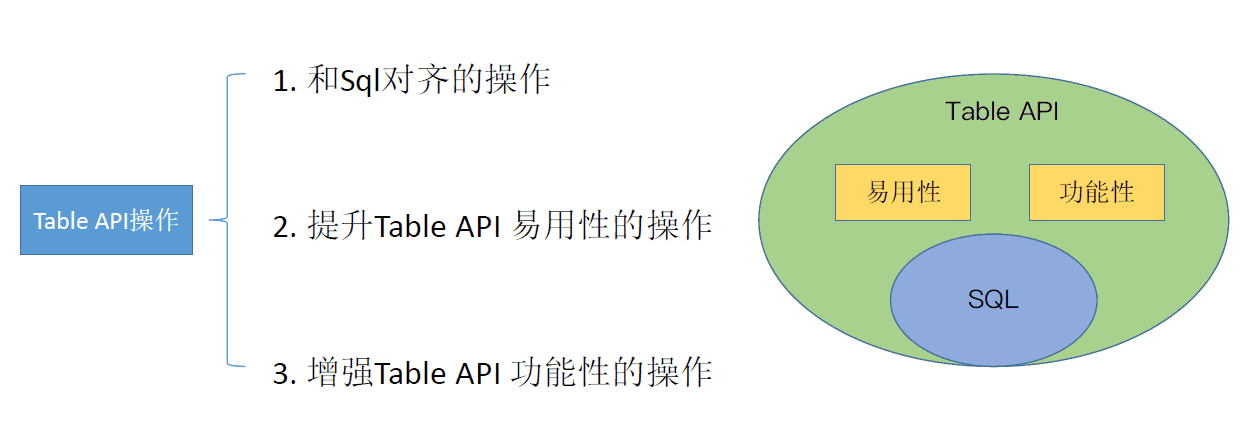

2.2 TableAPI操作

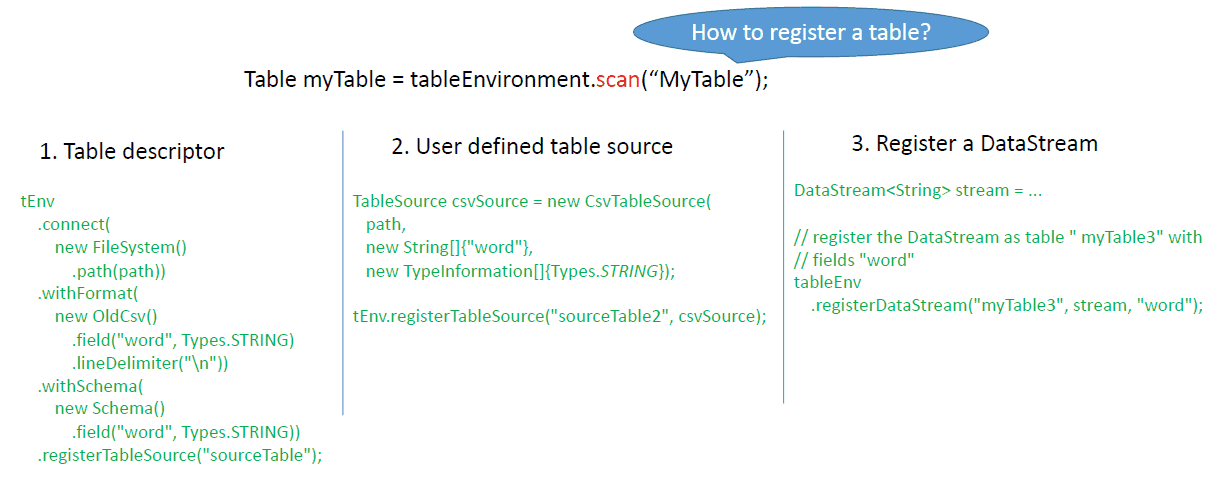

（1）how to get a Table

　　　　Table myTable = tableExnvironment.scan(“MyTable”); //Table 是从tableExnvironment中scan出来的，那么MyTable是如果注册呢，即：How to register a table?大致又三种：

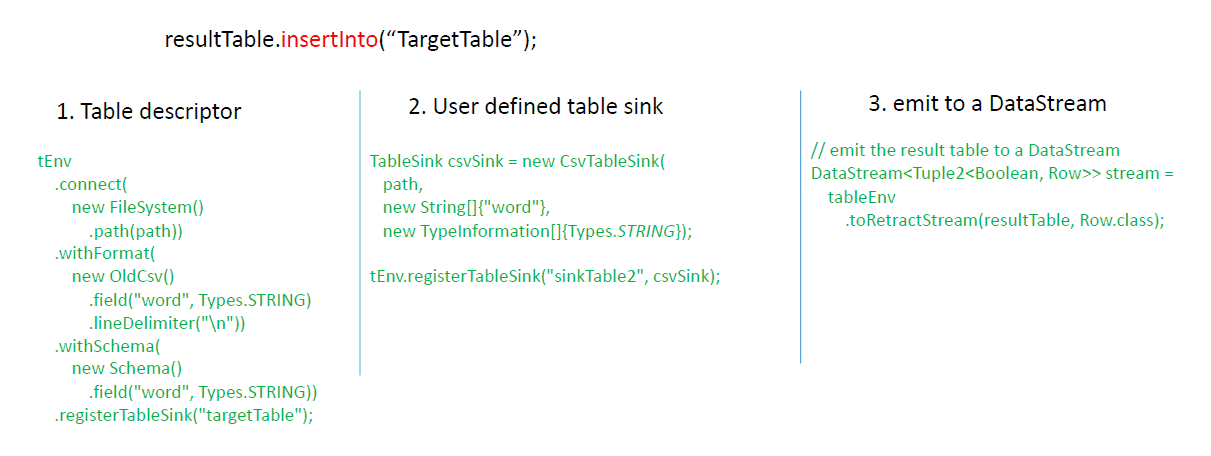

（2）how to emit a Table　　

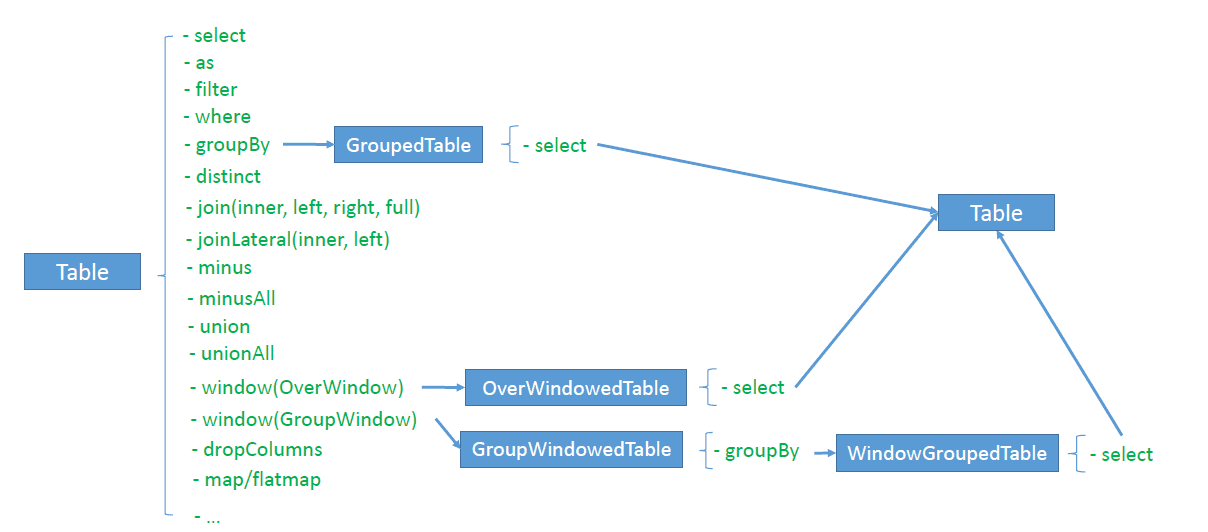

（3）how to query a Table

Columns Operation & Function

Columns Operation - 易用性

假设有一张100列的表，我们需要去掉一列，需要怎么操作?

Operators	Examples
AddColumns	Table orders = tableEnv.scan(“Orders”); Table result = orders.addColumns(“concat(c, ‘sunny‘)as desc”);
AddOrReplaceColumns	Table orders = tableEnv.scan(“Orders”); Table result = orders.addOrReplaceColumns(“concat(c, ‘sunny’) as desc”);
DropColumns	Table orders = tableEnv.scan(“Orders”); Table result = orders.dropColumns(“b, c”);
RenameColumns	Table orders = tableEnv.scan(“Orders”); Table result = orders.renameColumns(“b as b2, c as c2”);

假设有一张100列的表，我们需要选择第20-第80列，需要怎么操作?

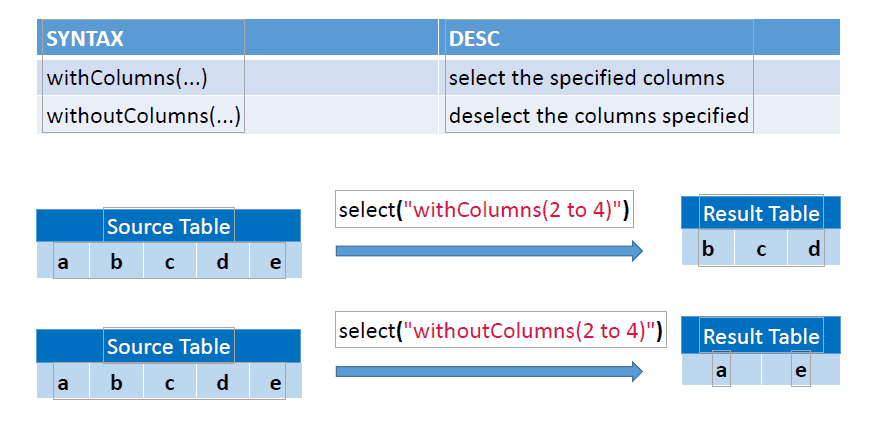

Columns Function - 易用性

Syntax

The proposed colu mn operati on syn tax is as follows:

columnOperation:

withColu mn s(colu mn Exprs) / withoutColu mn s(colu mn Exprs)

columnExprs:

columnExpr [, columnExpr]*

columnExpr:

columnRef | columnlndex to columnlndex | columnName to columnName

columnRef:

colu mnN ame(The field n ame that exists in the table) | colu mnln dex(a
positive in teger start ing at 1)

Example: withColumns(a, b, 2 to 10, w to z)

总结

API	Example
Columns Operation	table.dropColumns(‘a, ‘b)
Columns Function	table.select(withColum ns(‘a, 1 to 10))

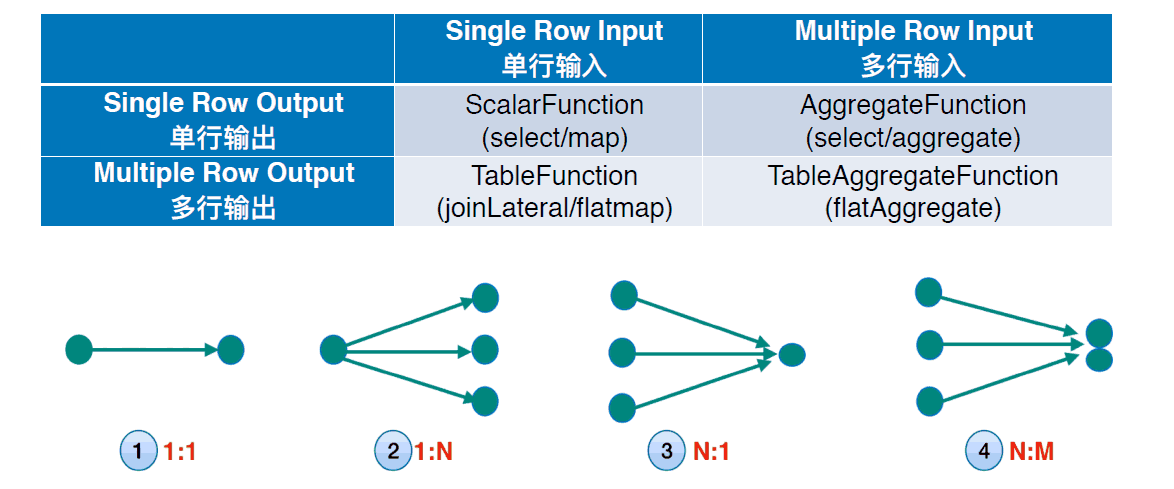

Row-based Operation

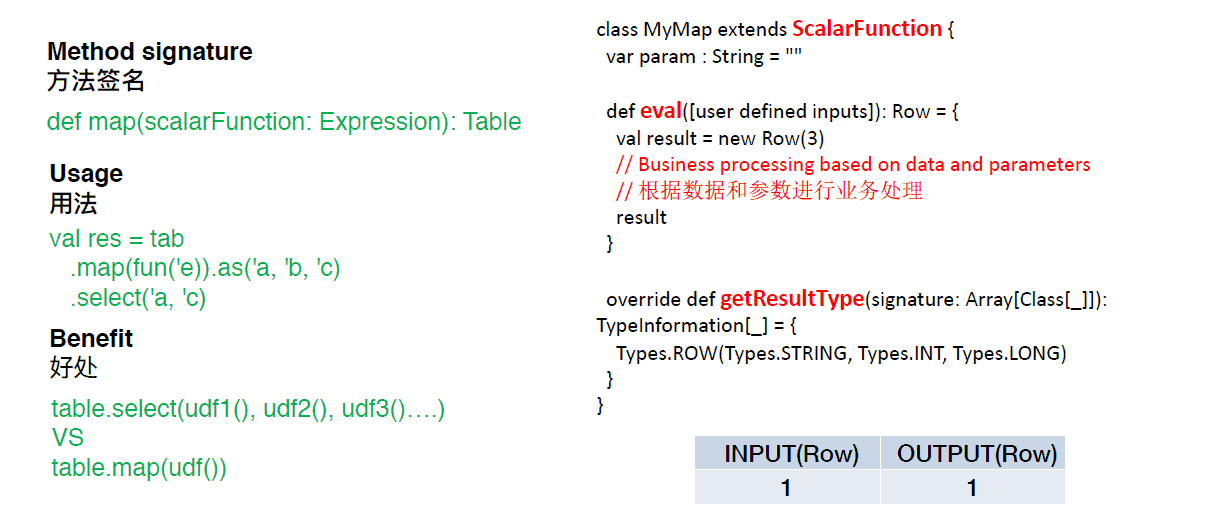

Map operation - 易用性

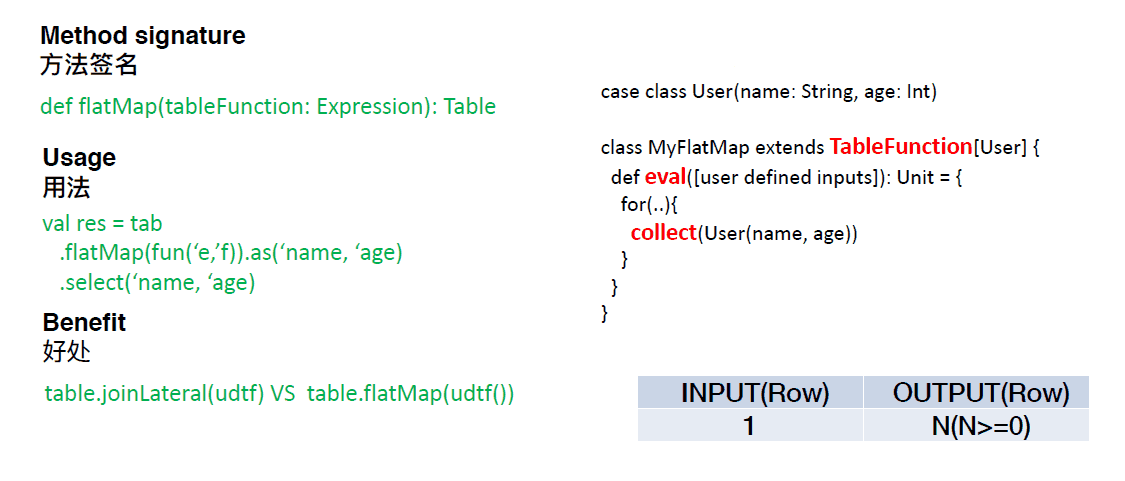

FlatMap operation - 易用性

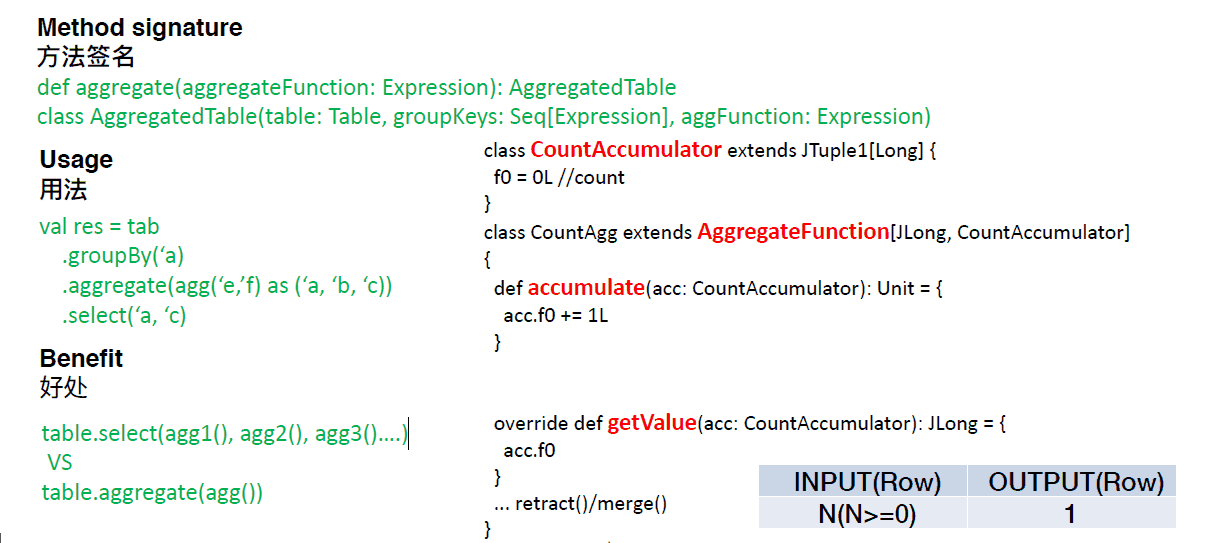

Aggregate operation 一 易用性

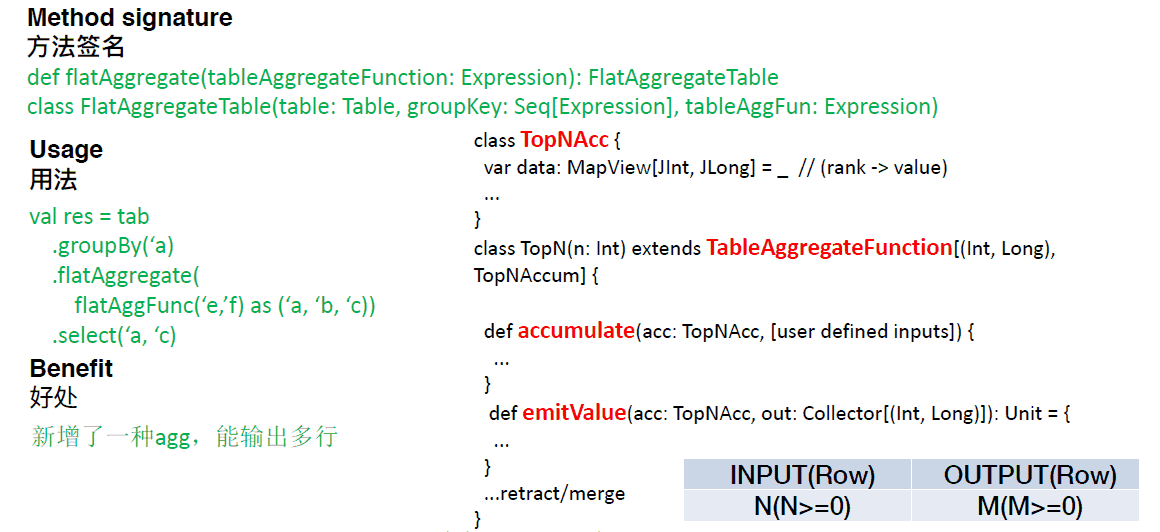

FlatAggregate operation —功能性

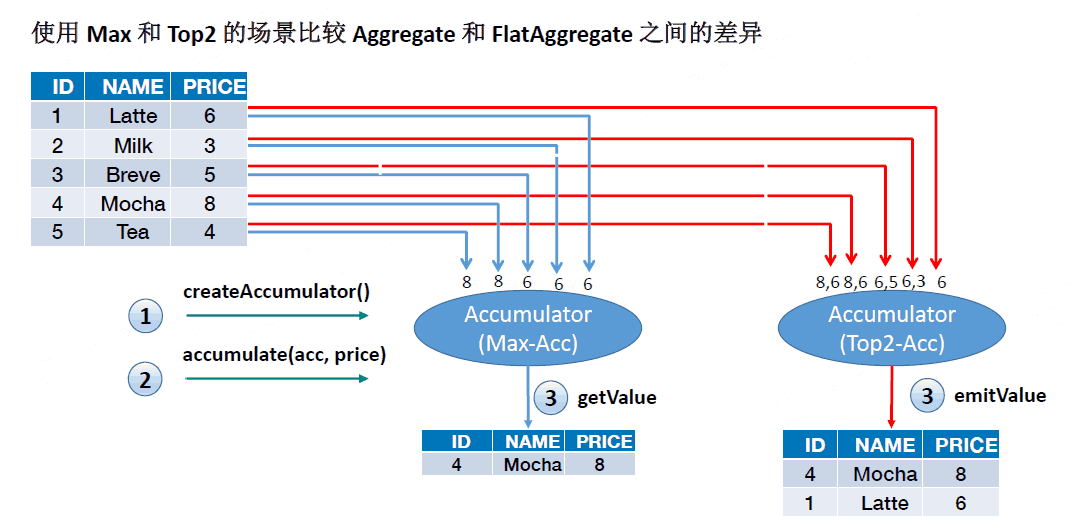

Aggregate VS TableAggregate

总结

三. Table API 动态

3.1 Flip29

https://issues.apache.org/jira/browse/FLINK-10972

3.2 Python Table API

https://issues.apache.org/jira/browse/FLINK-12308

3.3 Interactive Programming（交互式编程）

https://issues.apache.org/jira/browse/FLINK-11199

3.4 Iterative processing（迭代计算）

https://issues.apache.org/jira/browse/FLINK-11199
