该操作采用两种或更多种形状作为输入。然后，它返回第一形状的区域，不包括与第二形状重叠的区域，如下所示。

您可以使用名为subtract（）的方法对形状执行减法运算。由于这是一个静态方法，您应该使用类名（Shape或其子类）来调用它，如下所示。

Shape shape = Shape.subtract(circle1, circle2);

以下是减法操作的示例。在这里，我们绘制两个圆并对它们执行减法运算。

将此代码保存在名为SubtractionExample.java的文件中。

例

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.stage.Stage;
import javafx.scene.shape.Circle;
import javafx.scene.shape.Shape;

public class SubtractionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing Circle1
      Circle circle1 = new Circle();

      //Setting the position of the circle
      circle1.setCenterX(250.0f);
      circle1.setCenterY(135.0f);

      //Setting the radius of the circle
      circle1.setRadius(100.0f);

      //Setting the color of the circle
      circle1.setFill(Color.DARKSLATEBLUE);

      //Drawing Circle2
      Circle circle2 = new Circle();

      //Setting the position of the circle
      circle2.setCenterX(350.0f);
      circle2.setCenterY(135.0f);

      //Setting the radius of the circle
      circle2.setRadius(100.0f);

      //Setting the color of the circle
      circle2.setFill(Color.BLUE);

      //Performing subtraction operation on the circle
      Shape shape = Shape.subtract(circle1, circle2);

      //Setting the fill color to the result
      shape.setFill(Color.DARKSLATEBLUE);

      //Creating a Group object
      Group root = new Group(shape);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Subtraction Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

javac SubtractionExample.java
java SubtractionExample

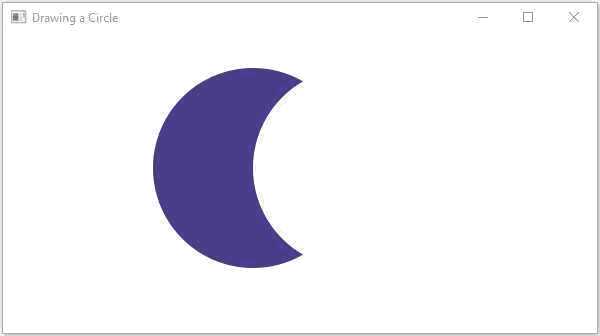

执行时，上面的程序生成一个显示以下输出的JavaFX窗口 -
