JavaFX Animations（动画）

后端 java javafx 2019/08/08

本文于1804天之前发表，文中内容可能已经过时。

通常，动画对象意味着通过快速显示来创建其运动的错觉。在JavaFX中，可以通过随时间更改其属性来动画化节点。JavaFX提供了一个名为javafx.animation的包。此程序包包含用于为节点设置动画的类。动画是所有这些类的基类。

使用JavaFX，您可以应用动画（过渡），如淡入淡出过渡，填充过渡，旋转过渡，缩放过渡，笔划过渡，平移过渡，路径过渡，顺序过渡，暂停过渡，并行过渡等。

所有这些转换都由包javafx.animation中的各个类表示。

要将特定动画应用于节点，您必须按照以下步骤操作 -

  • 使用相应的类创建require节点。
  • 实例化要应用的相应转换（动画）类
  • 设置过渡的属性和
  • 最后使用Animation类的play（）方法进行转换。

在本章中，我们将讨论基本过渡（旋转，缩放，翻译）的示例。

旋转过渡

以下是演示JavaFX中的Rotate Transition的程序。将此代码保存在名为RotateTransitionExample.java的文件中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
import javafx.animation.RotateTransition;
import javafx.application.Application;
import static javafx.application.Application.launch;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.scene.shape.Polygon;
import javafx.stage.Stage;
import javafx.util.Duration;

public class RotateTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Creating a hexagon
      Polygon hexagon = new Polygon();

      //Adding coordinates to the hexagon
      hexagon.getPoints().addAll(new Double[]{
         200.0, 50.0,
         400.0, 50.0,
         450.0, 150.0,
         400.0, 250.0,
         200.0, 250.0,
         150.0, 150.0,
      });
      //Setting the fill color for the hexagon
      hexagon.setFill(Color.BLUE);

      //Creating a rotate transition
      RotateTransition rotateTransition = new RotateTransition();

      //Setting the duration for the transition
      rotateTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      rotateTransition.setNode(hexagon);

      //Setting the angle of the rotation
      rotateTransition.setByAngle(360);

      //Setting the cycle count for the transition
      rotateTransition.setCycleCount(50);

      //Setting auto reverse value to false
      rotateTransition.setAutoReverse(false);

      //Playing the animation
      rotateTransition.play();

      //Creating a Group object
      Group root = new Group(hexagon);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Rotate transition example ");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

1
2
javac RotateTransitionExample.java
java RotateTransitionExample

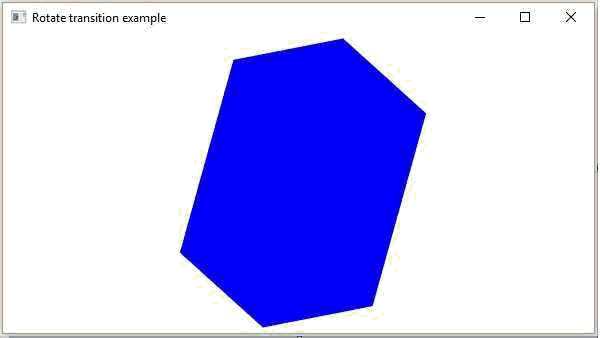

执行时，上面的程序生成一个JavaFX窗口，如下所示。

缩放过渡

以下是在JavaFX中演示Scale Transition的程序。将此代码保存在名为ScaleTransitionExample.java的文件中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
import javafx.animation.ScaleTransition;
import javafx.application.Application;
import static javafx.application.Application.launch;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.stage.Stage;
import javafx.util.Duration;

public class ScaleTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(50.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Creating scale Transition
      ScaleTransition scaleTransition = new ScaleTransition();

      //Setting the duration for the transition
      scaleTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      scaleTransition.setNode(circle);

      //Setting the dimensions for scaling
      scaleTransition.setByY(1.5);
      scaleTransition.setByX(1.5);

      //Setting the cycle count for the translation
      scaleTransition.setCycleCount(50);

      //Setting auto reverse value to true
      scaleTransition.setAutoReverse(false);

      //Playing the animation
      scaleTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Scale transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

1
2
javac ScaleTransitionExample.java
java ScaleTransitionExample

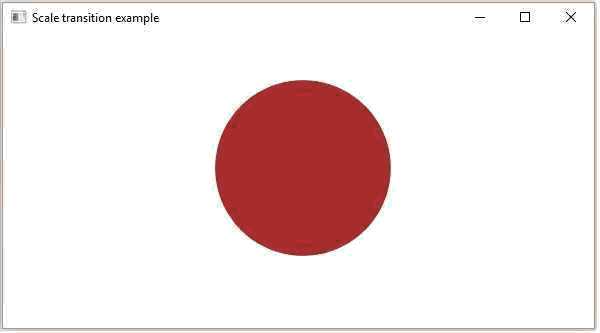

执行时，上面的程序生成一个JavaFX窗口，如下所示。

平移过渡

以下是演示JavaFX中的Translate Transition的程序。将此代码保存在名为TranslateTransitionExample.java的文件中。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
import javafx.animation.TranslateTransition;
import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.stage.Stage;
import javafx.util.Duration;

public class TranslateTransitionExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(150.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(100.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Creating Translate Transition
      TranslateTransition translateTransition = new TranslateTransition();

      //Setting the duration of the transition
      translateTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      translateTransition.setNode(circle);

      //Setting the value of the transition along the x axis.
      translateTransition.setByX(300);

      //Setting the cycle count for the transition
      translateTransition.setCycleCount(50);

      //Setting auto reverse value to false
      translateTransition.setAutoReverse(false);

      //Playing the animation
      translateTransition.play();

      //Creating a Group object
      Group root = new Group(circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Translate transition example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

1
2
javac TranslateTransitionExample.java
java TranslateTransitionExample

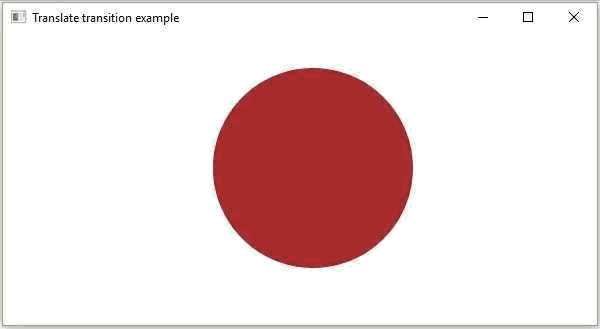

执行时，上面的程序生成一个JavaFX窗口，如下所示。

除此之外，JavaFX还提供了在节点上应用更多转换的类。以下是JavaFX支持的其他类型的转换。
