锚点窗格允许子节点的边缘锚定到锚点窗格边缘的偏移量。如果锚窗格具有边框和/或填充集，则将从这些插图的内边缘测量偏移。

如果我们在应用程序中使用Anchor窗格，则其中的节点将锚定在距窗格特定距离处。

包javafx.scene.layout的名为AnchorPane的类表示Anchor窗格。添加节点后，您需要从窗格的所有方向（顶部，底部，右侧和左侧）设置锚点。要设置锚点，此类提供四种方法，即 - setBottomAnchor（），setTopAnchor（），setLeftAnchor（），setRightAnchor（）。对于这些方法，您需要传递表示锚点的double值。

例

以下程序是Anchor Pane布局的示例。在此，我们在锚窗格中插入旋转圆柱体。同时，我们将它设置在离所有方向（顶部，左侧，右侧，底部）的窗格50个单元的位置。

将此代码保存在名为AnchorPaneExample.java的文件中。

import javafx.animation.RotateTransition;
import javafx.collections.ObservableList;
import javafx.scene.Scene;
import javafx.scene.layout.AnchorPane;
import javafx.scene.paint.Color;
import javafx.scene.paint.PhongMaterial;
import javafx.scene.shape.Cylinder;
import javafx.scene.transform.Rotate;
import javafx.stage.Stage;
import javafx.util.Duration;

public class AnchorPaneExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Cylinder
      Cylinder cylinder = new Cylinder();

      //Setting the properties of the Cylinder
      cylinder.setHeight(180.0f);
      cylinder.setRadius(100.0f);

      //Preparing the phong material of type diffuse color
      PhongMaterial material = new PhongMaterial();
      material.setDiffuseColor(Color.BLANCHEDALMOND);

      //Setting the diffuse color material to Cylinder5
      cylinder.setMaterial(material);

      //Setting rotation transition for the cylinder
      RotateTransition rotateTransition = new RotateTransition();

      //Setting the duration for the transition
      rotateTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      rotateTransition.setNode(cylinder);

      //Setting the axis of the rotation
      rotateTransition.setAxis(Rotate.X_AXIS);

      //Setting the angle of the rotation
      rotateTransition.setByAngle(360);

      //Setting the cycle count for the transition
      rotateTransition.setCycleCount(RotateTransition.INDEFINITE);

      //Setting auto reverse value to false
      rotateTransition.setAutoReverse(false);

      //playing the animation
      rotateTransition.play();

      //Creating an Anchor Pane
      AnchorPane anchorPane = new AnchorPane();

      //Setting the anchor to the cylinder
      AnchorPane.setTopAnchor(cylinder, 50.0);
      AnchorPane.setLeftAnchor(cylinder, 50.0);
      AnchorPane.setRightAnchor(cylinder, 50.0);
      AnchorPane.setBottomAnchor(cylinder, 50.0);

      //Retrieving the observable list of the Anchor Pane
      ObservableList list = anchorPane.getChildren();

      //Adding cylinder to the pane
      list.addAll(cylinder);

      //Creating a scene object
      Scene scene = new Scene(anchorPane);

      //Setting title to the Stage
      stage.setTitle("Anchor Pane Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

使用以下命令从命令提示符编译并执行保存的java文件。

javac AnchorPaneExample.java
java AnchorPaneExample

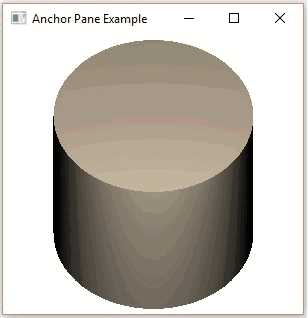

执行时，上面的程序生成一个JavaFX窗口，如下所示。
